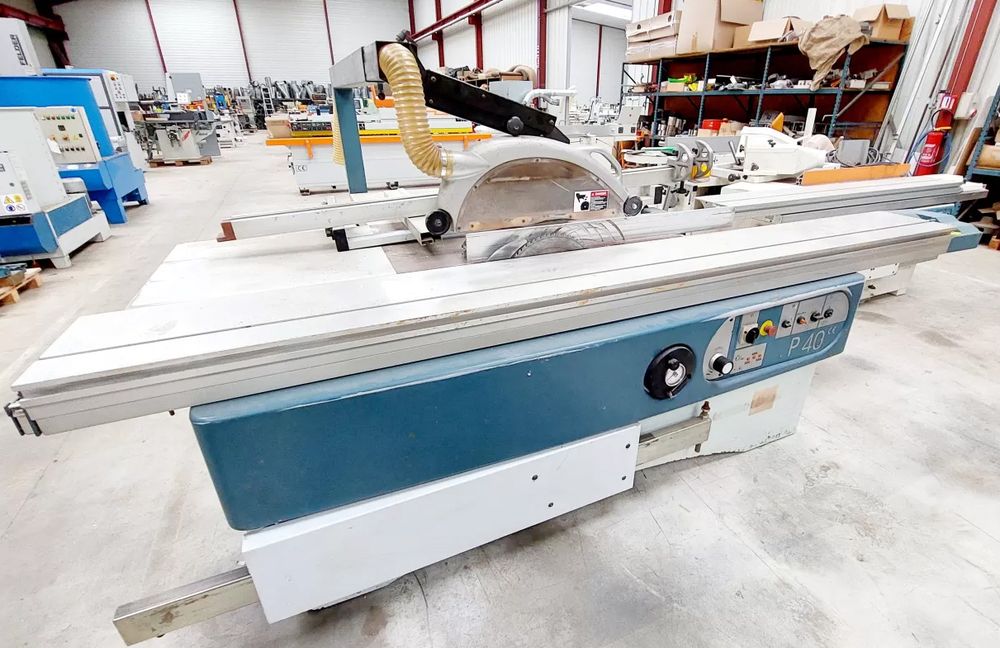

Paoloni P 40

Panel saw with scoring blade and sliding table
Electric lift and lowering
MACHINING CAPACITIES:
- Ripping length, carriage travel: 3200 mm
- Maximum cutting width with parallel guide: 1300 mm
- Squaring capacity (end cutting, crosscutting): 350 to 3500 mm
- Tilting blades: 90° - 45°

Maximum cutting height at 90°: 135 mm & at 45°: 95 mm
- Blade speeds: 3200/4000/5000 rpm
- Scoring blade speed: 7600 rpm
Maximum cutting height: 8 mm

COMPOSITION:
- Welded steel frame, cast iron main table
- Worktop height: 90 cm
Main table (W x D): 1140 x 670 mm

Left side extension
- Blade guard suspended on a support arm
- Maximum saw blade diameter: 400 mm Ø30 mm
- Scoring Blade Ø125 mm Bore Ø20 mm
- Front height control; Electric raising & lowering of the main blade

Manual adjustments for rotation speed, tilt, scoring blade, and parallel guide

Retractable parallel guide
- Sliding carriage flush with the blade, 350 mm working width, with handle and locking mechanism
Clamping shoe (rip stop) & pusher
- Squaring table (side frame) WxD: x mm
Telescopic and tiltable main graduated scale, max L 3500 mm

2 reversible stops
Intermediate supports in the frame, angle indicator
End roller for loading/unloading assistance

OTHER FEATURES:
- 380V power supply. Three-phase 50Hz IN max 14A
- Star-delta starting
- Saw motor 5.5 kW (7.5 hp)
- Scoring motor 0.55 kW
Suction: Top outlet Ø120 mm, bottom outlet Ø80 mm
- Recommended airflow: 1300 m3/h
- CE marking, lockable disconnect switch, emergency stop buttons
Foot dimensions (operating): 7.40 x 3.50 x 1.70 m (H)
Transport dimensions (disassembled): 3.50 x 2.30 x 1.70 m (W x D x H)
Weight: 870 kg
