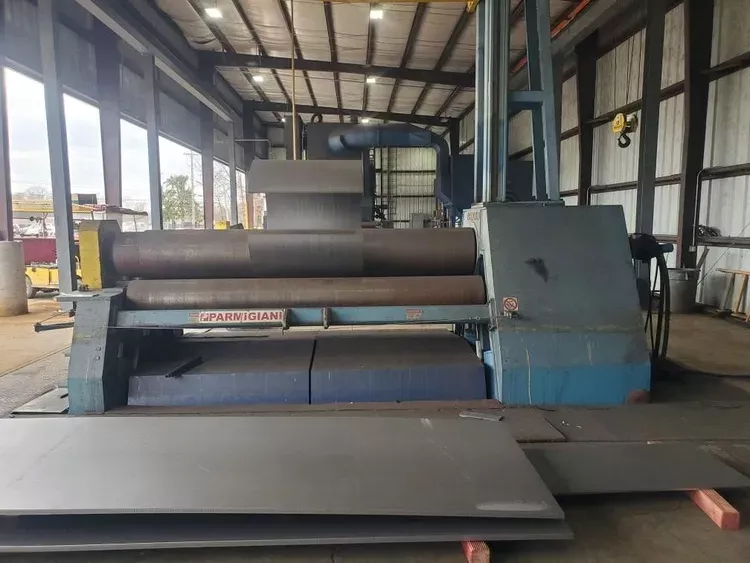

PARMIGIANI VBH 10/460

PARMIGIANI VBH 10/460
2011

Roll type: 4-roll double pinch
Maximum bending capacity: 1.563"
Maximum pre-bending capacity: 1"
Roll length: 122"
Top roll diameter: 18.11"
Central lower roll diameter: 16.93"
Side roll diameter: 14.17"
Control: Parmigiani Stradivarius CNC with 15" touchscreen
Main drive motor: 72 HP
Approximate machine weight: 68,000 lbs
Electrics: 480 V, 60 Hz, 3 Ph
Power rear roll: Yes
Drive type: Hydraulic

Induction hardened rolls
Hydraulic adjustment of side rolls independent of each other
Independent adjustment of each end of each lower roll
Infinitely variable rolling speeds
Infinitely variable adjustment speeds
Hydraulic drop end
Cone bending
Hydraulic upper plate support
Hydraulic side plate support
