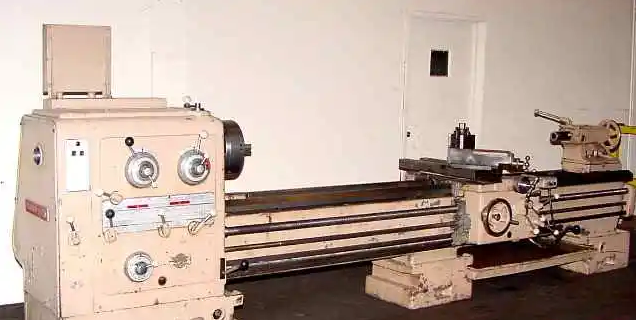

Pasquino-Milano Engine Lathe 1200 RPM 24"/34" X 120"

24"/34" X 120" PASQUINO-MILANO
Year: 1960



GAP BED ENGINE LATHE
SWING OVER BED ........................... 24-1/4"
SWING OVER CROSS SLIDE ................... 14-1/2"
SWING OVER GAP ........................... 34"
DISTANCE BETWEEN CENTERS ................. 120"
BED WIDTH ................................ 18"
SPINDLE SPEEDS (16) ...................... 22 - 1200 RPM
HOLE THRU SPINDLE ........................ 2-1/2"
SPINDLE NOSE ............................. L NOSE
FEED RANGE ............................... .05 - .937
THREADING - INCH ......................... 4 - 60 TPI
THREADING - METRIC ....................... .5 - 7.5 MM
TAILSTOCK TAPER .......................... #5MT
QUILL TRAVEL ............................. 7-7/78"
APPROX WEIGHT ............................ 10,500 LBS
APPROX DIMENSIONS ........................ 190"L x 4'5"W x 55"H

EQUIPPED WITH:
3-JAW CHUCK
QUICK CHANGE TOOLPOST
REMOVABLE GAP BLOCK
HARDENED & GROUND BEDWAYS
COOLANT SYSTEM
POWER RAPID TRAVERSE
18 HORSE POWER SPINDLE MOTOR
