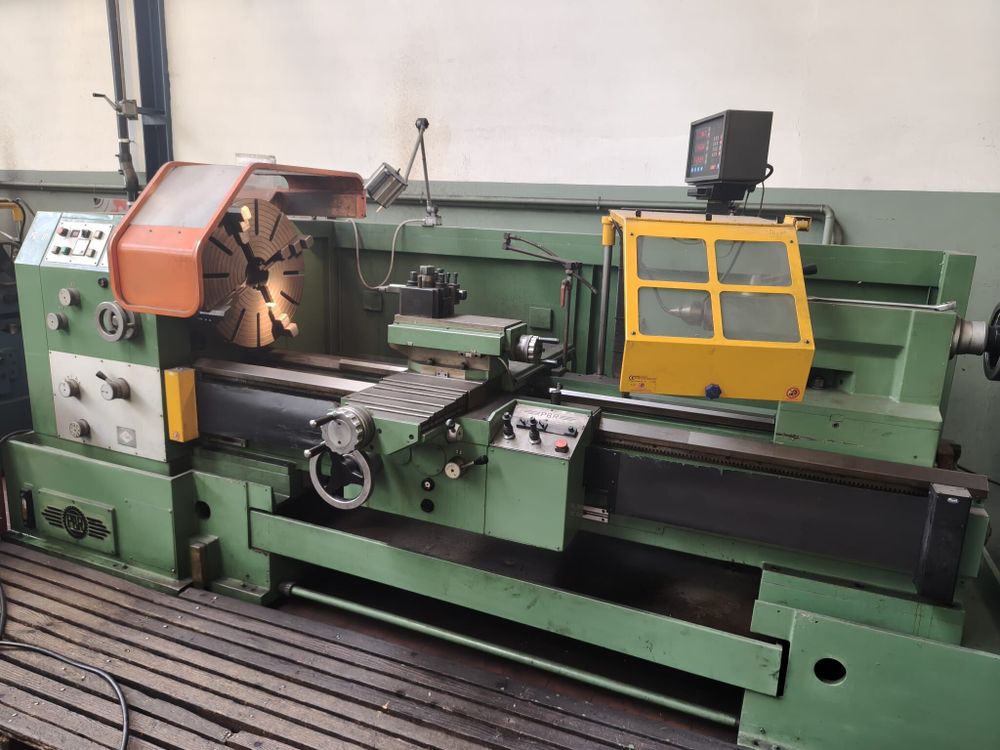

PBR Engine Lathe 1000 rpm T 350

Centre distance 2000 mm
Centre height 350 mm
Max swing over bed 740 mm
Max swing over saddle 420 mm
Max swing in gap 1000 mm
Bar passage 780 mm

X-axis travel 340 mm
Z-axis travel 560 mm

Bed width 570 mm
Guideways number 460
Guideways section 430

Tailstock quill diameter 115 mm
Tailstock quill stroke 380 mm
Tailstock taper MT6

Spindle nose Cam-Lock 11" D1 type
Spindle bore 130 mm
Spindle speed range 5–1000 rpm
Spindle speeds 24 steps
Max torque 560 kgm

Feed range 108 steps
Longitudinal/cross feed 0.05–22.4 mm/rev
Rapid traverse longitudinal/cross 2500 mm/min
Rapid return longitudinal 5000 mm/min

Max workpiece weight between centers 3500 kg
Max weight with steady rest 4500 kg
Overhung weight 1200 kg

Steady rests 100–400 mm / 40–280 mm
Spindle motor 25 hp
Machine weight approx. 6000 kg
