PBZ DL 5

Ref : 24617
Condition : Used
Manufacturer : -
Model : PBZ DL
Nb Of Axis : 5
Year(s) : 2007
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 06 Oct. 2020

Brand: Handtmann
Reference #24617


Handtmann PBZ DL5 5-Axis CNC Profile Machining Center
Age: 2007
Model: PBZ DL 5

FEATURES:

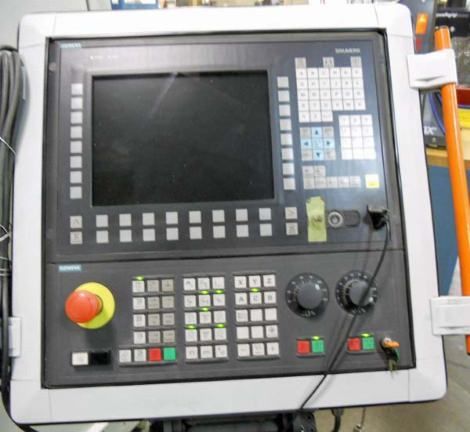

Siemens 840D CNC Controls

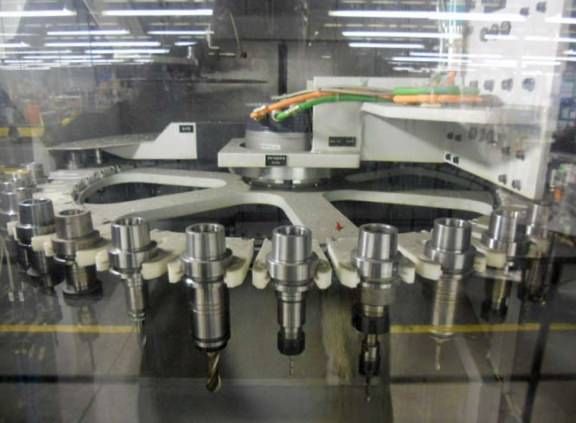

36-Station Automatic Tool Changer
Fully Automated Profile Machining

CAPACITY:
X-Axis Travel ......................... 78"
Y-Axis Travel ......................... 43"
Z-Axis Travel ......................... 27"
A-Axis, Head Swivel ................... +/- 120 Degrees
C-Axis, Head Rotation ................. +/- 200 Degrees
Profile Length ........................ 300"
Profile Width ......................... 7.5"
Profile Height ........................ 12.5"
Spindle Speeds ........................ to 28,000 RPM
Rapid Traverse, Max ................... 2,150 IPM
Spindle Taper ......................... HSK 53-F
Spindle Output ........................ 19 HP
Tool Length, Max ...................... 8"
Tool Weight, Max ...................... 11 Lbs.
Saw Blade Max. Diameter ............... 20"
Approx. Machine Weight ................ 70,000 Lbs.

EQUIPPED WITH:
Siemens 840D CNC Control
36-Station Automatic Tool Changer
Integrated Sawing Unit for Spatial Cuts
(4) Clamping Jaws
Chip Conveyor
