Peddinghaus AFPS 623-L 250 tons

Ref : 2720109-3-MT

Condition : Used

Manufacturer : Peddinghaus

Model : AFPS 623-L

Pressure : 250 tons

Year(s) : 1998

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

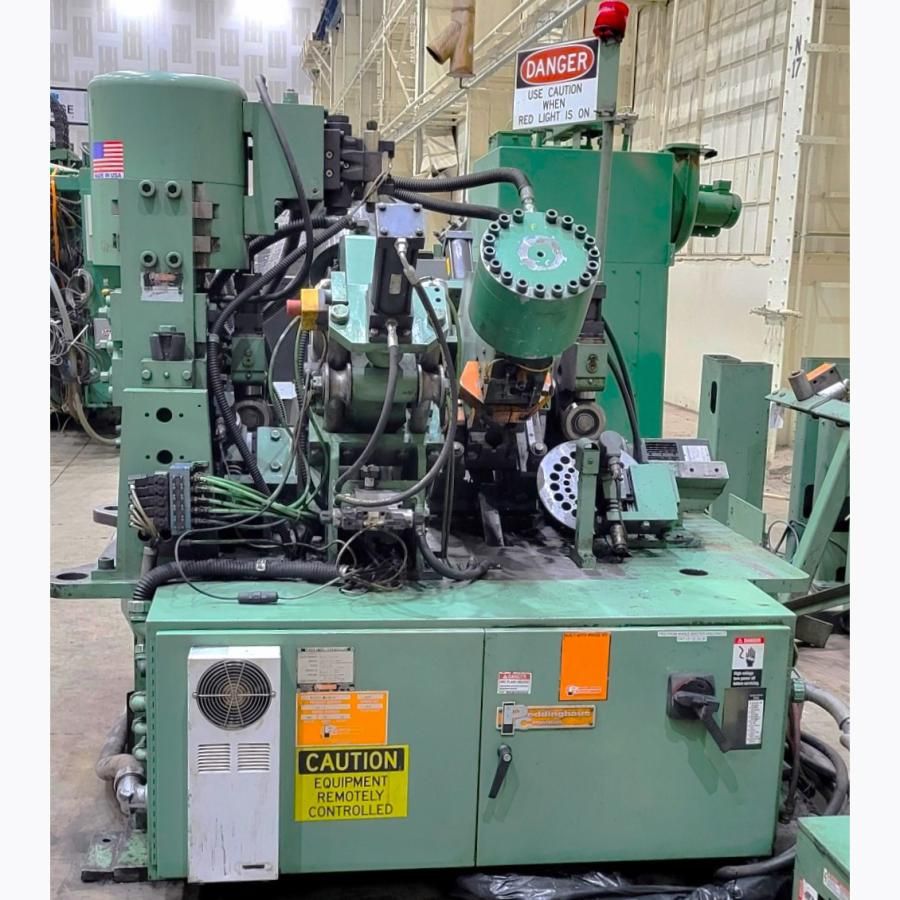

Peddinghaus AFPS 623-L
Year: 1998

Anglemaster Punch & Shear Line
Maximum Angle Size: 6" x 6"
Minimum Angle Size: 1-1/2" x 1-1/2" x 1/8"
Flat Bar Capacity (Shear & Punch): 6" x 5/8"
Punch Tonnage: 80 tons
Maximum Hole Size: 1-1/4"
Shear Tonnage: 250 tons
Drill Speed: 200 – 850 RPM
Drill Power: 13.5 HP (10 kW)
Angle Capacity: 1.5" x 1.5" x 1/8" to 6" x 6" x 5/8"
X-Axis Feed Rate: 150 FPM

Additional Features:
250-ton single cut shear
Pinch drive feed
Pulls material through machine
40' in-feed roller conveyor
Siemens PC-based CNC control
