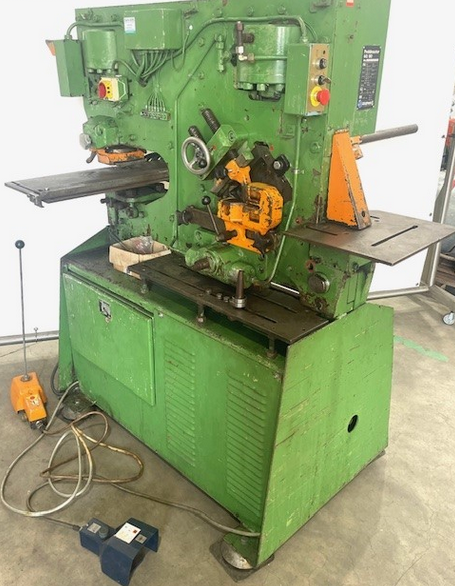

Peddinghaus Peddimaster 60/80 60 t

Ref : 2748748-3-AW

Condition : Used

Manufacturer : Peddinghaus

Model : Peddimaster 60/80

Pressure : 60 t

Year(s) : 1991

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Press force: 60 t
Round bar steel: 35 mm
Square edge steel: 32 mm
L-beam: 120 x 12 mm
Flat steel: 400 x 16 mm / 200 x 20 mm
Stroke: 10 - 27.5 mm
Throat: 410 mm
Punch diameter: 27 mm in 17 mm
Total power requirement: 7.5 kW
Weight: 2000 kg
Dimensions: 1800 x 800 x 1800 mm

Features
Hydraulic machine with 5 stations
Punching station
Notching station
Flat iron shear
Angle iron shear
Solid material shear
Punching with hand lever
Profile steel side with foot switch
Punching discharge 510 mm
All performance data based on 450 N/mm² material strength
Electric 380 V
