Peddinghaus Peddinghaus ABCM-1250A Beam Coping Line, 50" x 24" max. profile, Fagor 8055 Retrofit, #31655 ACBM-1250

Ref : 31655
Condition : Used
Manufacturer : Peddinghaus
Short Description : Peddinghaus ABCM-1250A Beam Coping Line, 50" x 24" max. profile, Fagor 8055 Retrofit, #31655
Model : ACBM-1250
Year(s) : -
Quantity : 1
Location : Seller or machines location:
United States (USA)

Reference #31655

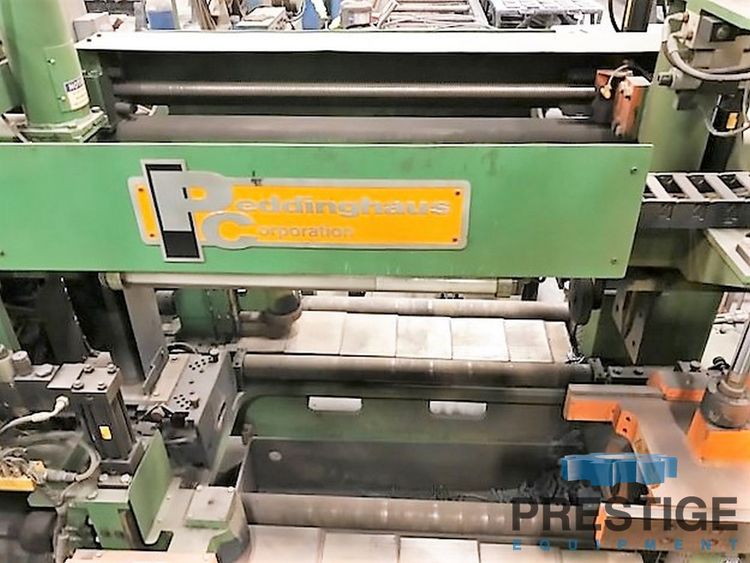

Peddinghaus ACBM-1250 CNC Profile Coping Machine

FEATURES:

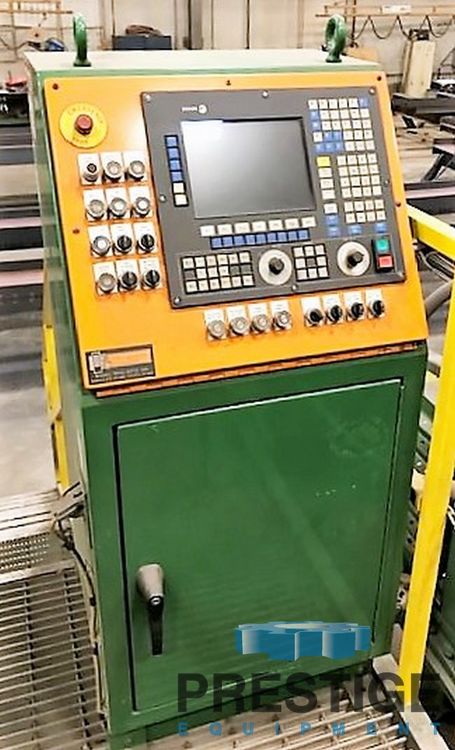

Fagor 8055 CNC Control (Retrofit)
Automatic Web Torch Adjustment
Web Prep
Probing

CAPACITY:
Maximum Beam Width .................... 50"
Minimum Beam Width .................... 3"
Maximum Flange Height ................. 24"
Maximum Material Thickness ............ 6"
Minimum Material Thickness ............ 1/4"
Number of Torches ..................... 3
Blocks-Maximum Length ................. Unlimited
Flange Thinning (Max. Length) ......... Unlimited
Flange Thinning (Max. Width) .......... Web Thickness
Machine Dimensions .................... 7'4" x 15'10" x 9'8"

EQUIPPED With:
Fagor 8055 CNC Control (Retrofit)
Automatic Web Torch Adjustment
Web Prep
Probing
