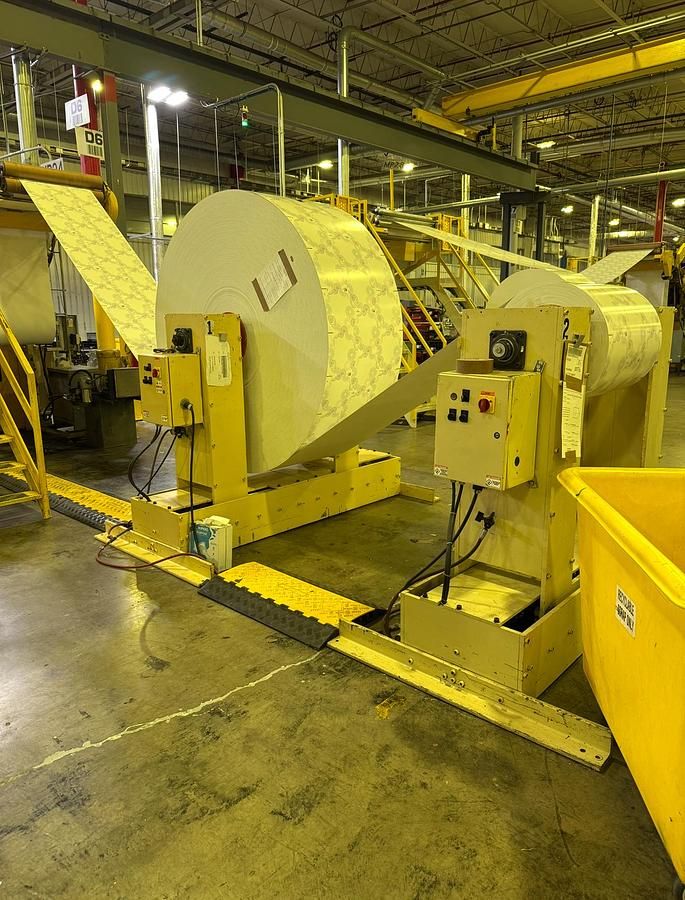

Peerless 44” Shaftless Roll Stand

Peerless 44” Shaftless Roll Stand

Specifications
Specification Capacity / Dimension
Model 44” Shaftless Roll Stand
Length (without roll) 48 in (1.2 m)
Length (with 72” roll) 72 in (1.83 m)
Width 90 in (2.29 m) + additional 48 in (1.2 m) clearance
Height (without roll) 58 in (1.47 m)
Height (with 72” roll) 88 in (2.24 m)
Weight (less roll) 3,000 lbs (1,361 kg)
Minimum Roll Width 17 in (432 mm)
Maximum Roll Width 44 in (1.1 m)
Maximum Roll Diameter 72 in (1.83 m)
Maximum Roll Weight 5,000 lbs (2,268 kg)
Payout Speed Range Up to 100 ft (30.5 m) per minute
Air Pressure Required 80 PSI (5.5 bar)

Electrical Specifications
Standard Input: 120V, 1 Phase, 60 Hz
Controls: 120V A.C.
