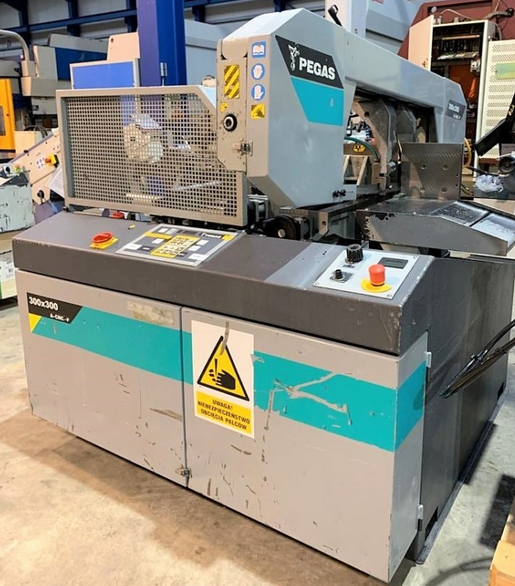

Pegas 300x300 A-CNC-F Band Saw Fully automatic electro-hydraulic band saw

Ref : 2774249-3-AW

Condition : Used

Manufacturer : Pegas

Model : 300x300 A-CNC-F

Type : Band Saw

Controller : Fully automatic electro-hydraulic band saw

Year(s) : 2006

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Cutting diameter 290 mm
Cutting width 300 mm
Saw band length 4000 x 27 x 0.9 mm
Band speed 20–100 m/min
Load center 290 mm
Rotary disc size 290 x 300 mm
Capacity at 45° round 260 mm
Capacity at 45° flat 280 x 240 mm
Machine dimensions 1800 x 1900 x 1750 mm
Machine weight approx. 2200 kg
Electric feed unit max feed 520 mm

Fully automatic electro-hydraulic band saw
Front control panel
Electro-hydraulic material clamping
Semi-automatic mode selectable
Automatic mode selectable
Automatic miter cuts up to 45° right
Semi-automatic miter cuts up to 60° right
Stepless saw blade speed adjustment
