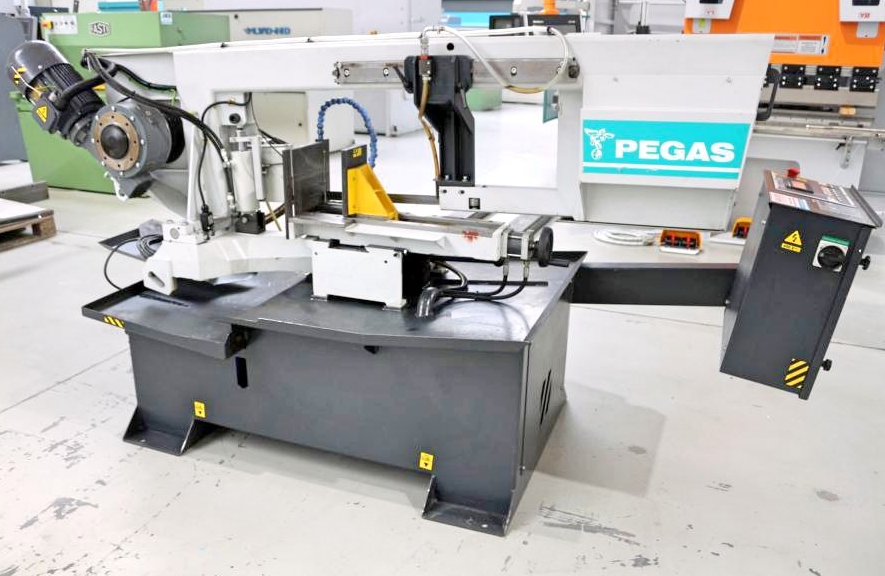

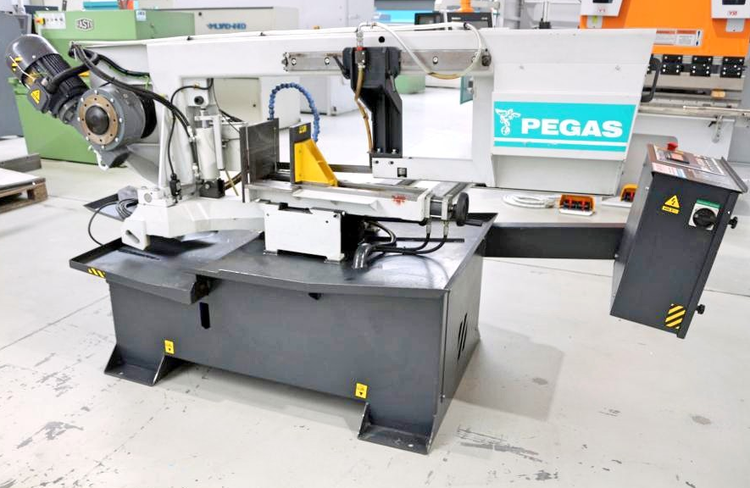

Pegas HALBAUTOMAT - 360x500 SHI LRF Band Saw Automatic

Cutting diameter: 360 mm
Capacity 90° flat: 500 x 350 mm
Capacity 45° round: 360 mm
Capacity 45° flat: 420 x 300 mm
Capacity 60° round: 300 mm
Capacity 60° flat: 300 x 200 mm
Turning speed range: 20–100 m/min
Saw band dimensions: 4780 x 34 x 1.1 mm
Engine output: 3.0 kW
Control: SPS
Weight: 740 kg
Machine dimensions: 2800 x 1080 x 2340 mm

Features / Equipment
Robust electro-hydraulic semi-automatic band sawing machine
For sawing hollow profiles and solid materials
Miter cuts from 60° right to 60° left
Cutting angle fixed via quick-release lever
Swiveling control panel with NC SPS Mitsubishi control
Infinitely variable saw blade speed
Saw blade guide with adjustable carbide plates
Three-phase motor with overload protection
Saw blade drive with oil-lubricated worm gear
Mechanical saw blade tensioning and monitoring
Chip removal brush
Coolant device
Replacement saw blade
Operating instructions
