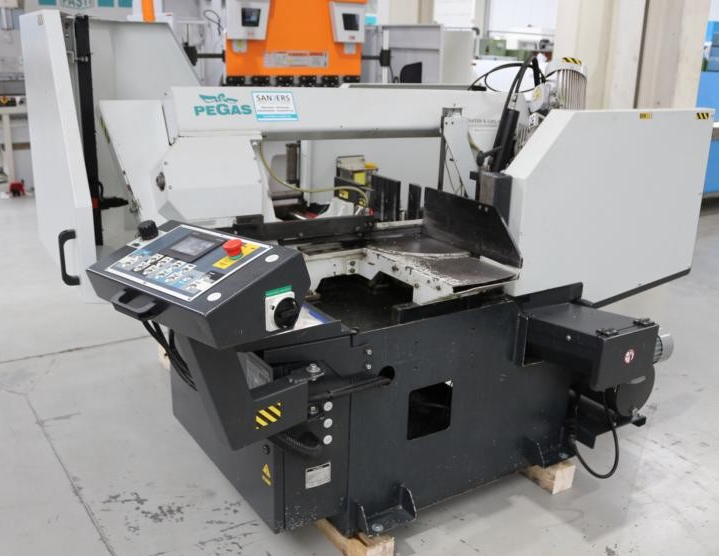

Pegas VOLLAUTOMAT 300 x 320 A-CNC-R Band Saw CNC CONTROL SPS

Cutting diameter: 300 mm
Saw band length: 3660 x 27 x 0.9 mm
Capacity 90° flat: 320 x 290 mm
Capacity 45° round: 290 mm
Capacity 45° flat: 260 x 280 mm
Capacity 60° round: 200 mm
Capacity 60° flat: 180 x 170 mm
Coolant capacity: approx. 100 l
Control: SPS
Total power requirement: 2.4 kW AC
Weight: 904 kg
Machine dimensions: 2410 x 1920 x 2020 mm

Features / Equipment
Robust electro-hydraulic miter band saw
Fully automatic material feed
Material feed unit with recirculating ball screws
PLC Mitsubishi control unit
20 programs with 15 cutting lengths and piece count
Angles from 0° to 60°
Ball-bearing rotary table
Miter cuts up to 45° in automatic mode
Miter cuts up to 60° in semi-automatic mode
Manual miter adjustment
Stepless miter angle adjustment
Saw blade guides with carbide plates
Saw feed adjustable via fine throttle
Strong machine bed
Torsion-free saw frame
Stepless saw blade speed adjustment
Coolant device
Operating instructions for machine
Operating instructions for control system
PEGAS chip conveyor
