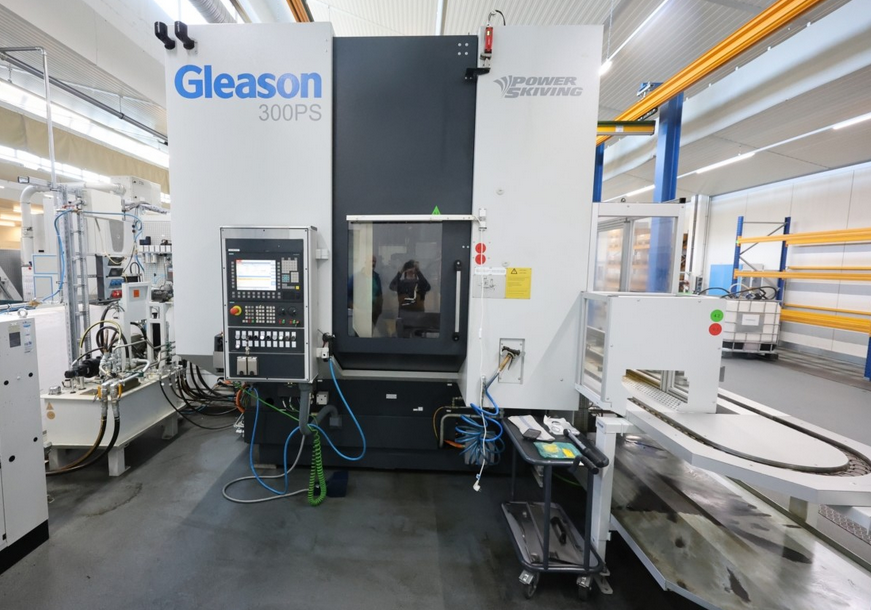

Gleason, Pfauter 300 PS Workpiece table speed: 0–1500 rpm Hob Peeling Machine
Ref :
2796269-3-GO
Condition :
Used
Manufacturer :
Gleason, Pfauter
Model :
300 PS
Spindle Speed :
Workpiece table speed: 0–1500 rpm
Short Description :
Hob Peeling Machine
Year(s) :
2018
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel: 350 mm
Y-axis feed: 5000 mm/min
Z-axis travel: 300 mm
Z-axis travel: 440 mm
X-axis feed: 12000 mm/min
Z-axis feed: 8570 mm/min
Swivel range of peeling head: ±25°
CNC Siemens 840 sl
Swivel grab travel: 180°
Max wheel diameter: 450 mm
Max module: 4 mm
Internal diameter min.: 100 mm
Internal diameter max.: 300 mm
Maximum permissible peeling wheel diameter: 175 mm
Installation area diameter: 125 mm
Tool speed: 0–3000 rpm
Workpiece table outer diameter: 570 mm
Maximum permissible table load: 5 kN
Voltage: 400 V
Hydraulic capacity: 150 l
Coolant capacity: 850 l
Engine and hydraulic cooling capacity: 100 l
Grease lubrication: 2 kg
Machine weight: 11 t
Machine dimensions: 5.85 x 8.3 x 3.8 m
