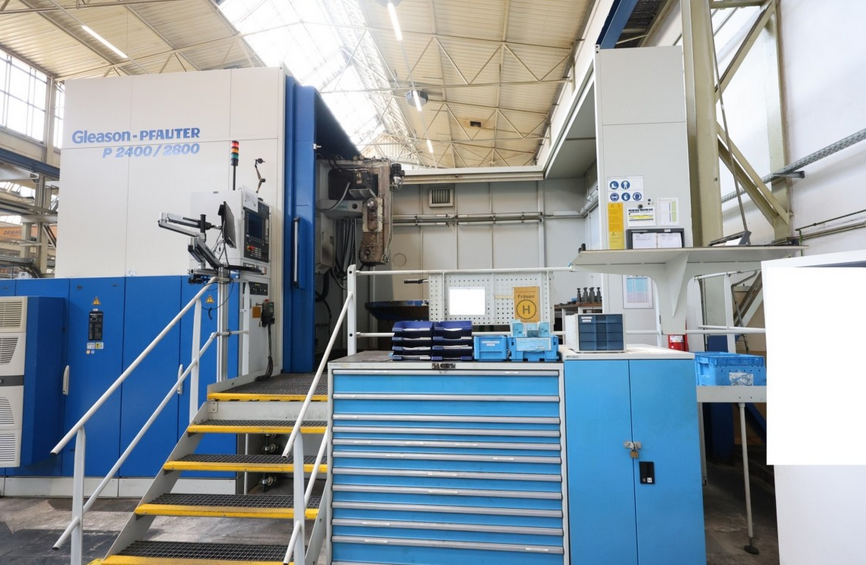

Gleason, Pfauter P 2400/2800 Variable Speed Gear Hobbing Machine - Vertical
Ref :
2740747-3-GO
Condition :
Used
Manufacturer :
Gleason, Pfauter
Model :
P 2400/2800
Spindle Speed :
Variable Speed
Short Description :
Gear Hobbing Machine - Vertical
Year(s) :
2007
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Workpiece diameter nominal 2400 mm
Maximum workpiece diameter 2800 mm
Maximum module 30 mm
Control Siemens Sinumerik 840 D
Dividing plate diameter 2200 mm
Table diameter 2500 mm
Table hole diameter/depth 800/875 mm
Maximum table load 40000 kg
Table speed 4.5 rpm
Maximum clamping length 375 mm
Maximum clamping diameter 350 mm
Maximum cutter diameter 2800 mm
Cutter arbor cone HSK-B160
Swivelling range milling head +30/–45°
Distance cutter–workpiece 615/1600 mm
Machine weight 57000 kg
Features/Options/Equipment
IFK2 internal milling head
Milling arbor with spacers
Chip conveyor
Oil mist extraction
Technical documentation
Feedrate axial 4000 mm/min
Feedrate radial 3000 mm/min
Feedrate tangential 3000 mm/min
