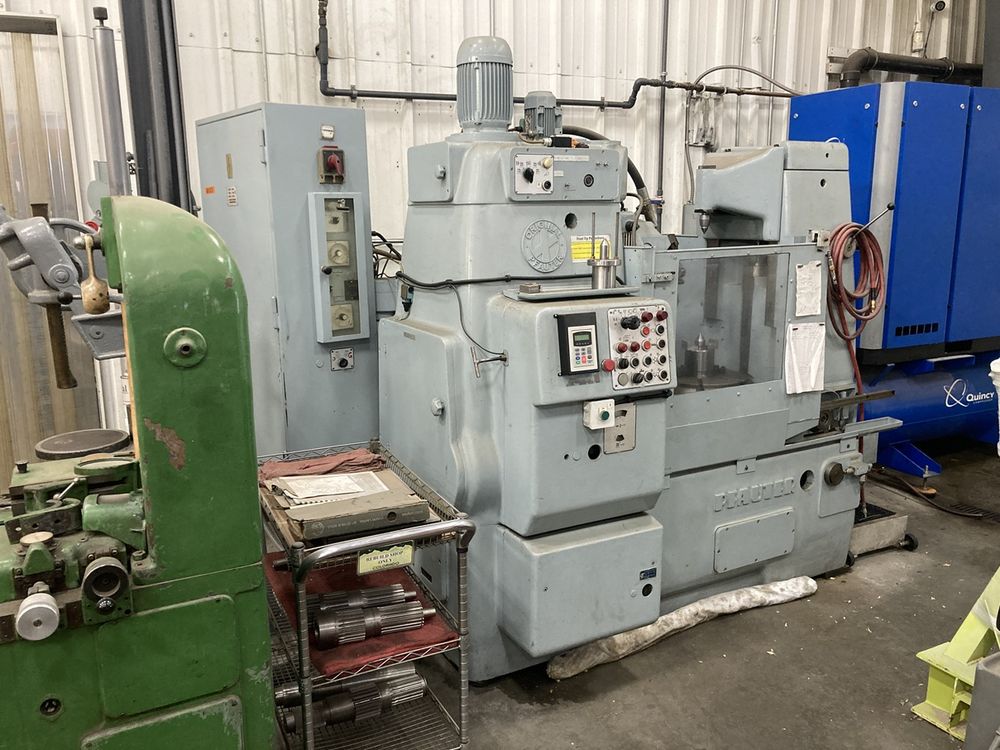

Pfauter P-400 500 RPM Gear Hobber

Max Gear Diameter 15.74”
Module 8
Rotary Table Size 16”
Bore of Work Table 3.14”
Max Travel of Mill Holder Slide 12.20”
Max Cutter Diameter & Length 6.29”
Center Distance Between Milling & Piece 0.78” – 11.41”
Max Moving of Milling Cutter (Shifting) 4.72”
Max Moving of Milling Cutter (Tangential) 4.96”
Max Hob Spindle Speed 500 RPM
Axial Feeds 0.4 – 7.5 mm/min
Radial Feeds 0.1 – 1.9 mm/min
Tangential Feeds 0.16 – 3 mm/min
Main Motor 17 kW
Voltage 440/460 V
Approximate Weight 12,500 lbs
Overall Dimension 102”L x 65”W x 95”H
