Pfauter PE 1503 150 rpm Max. wheel diameter: 1500 mm

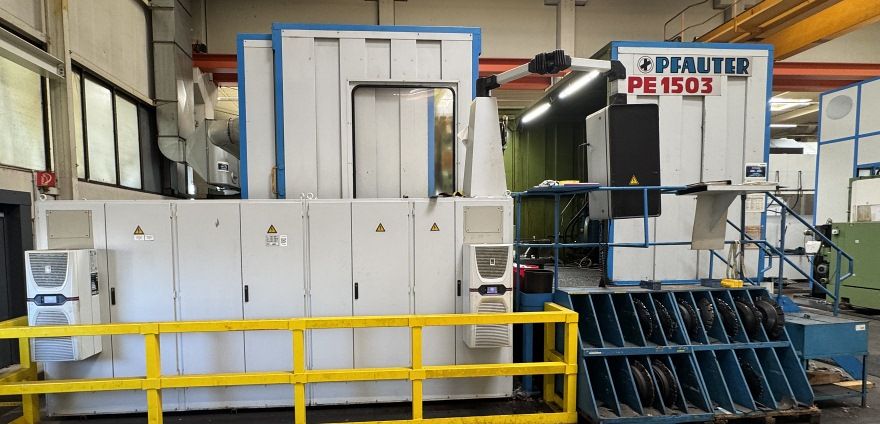

PFAUTER PE 1503

Max. wheel diameter: 1500 mm
Gear width: 0 mm
Axial slide travel: 600 mm
Distance table to counterstay arm: 1482 mm
Distance between table and spindle: 1067 mm
Milling spindle taper: 55
Hob diameter: 350 mm
Hob width: 400 mm
Axis distance between spindles min./max.: 50 / 935 mm
Milling spindle adjustment: 250 mm
Milling slide swiveling: 15 / 120 degrees
Table diameter: 1200 mm
Table hole: 300 mm
Table taper: MK 6
Milling spindle speed: 25 - 150 rpm
Axial feed: 1 - 1000 mm/min
Radial feed: 1 - 1000 mm/min
Tangential feed: 1 - 500 mm/min
Electrics voltage/frequency: 380 V / 50 Hz
Control: Sinumerik 3
Total power requirement: 100 kVA
Machine weight: 22 t
Machine dimensions: 10.3 x 7.4 x 5.3 m
Equipped with internal milling head only
