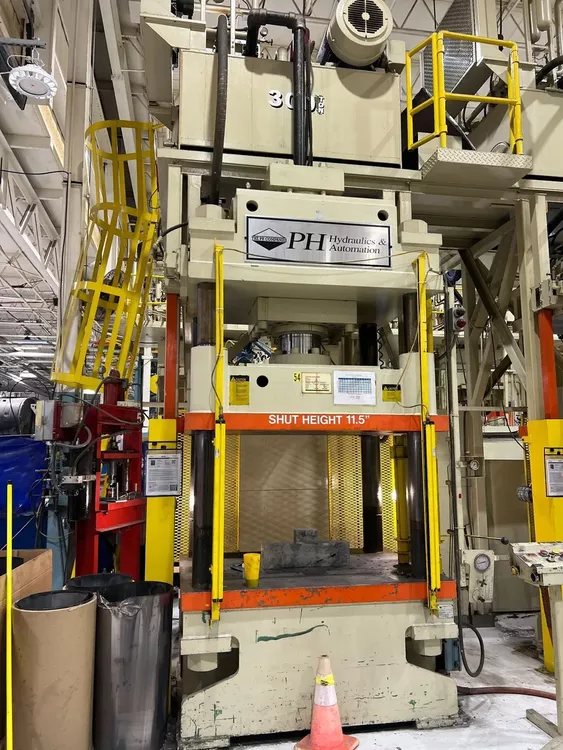

PH HYDRAULICS 4C 300-P 300 Ton

Bed size 65 in (L-R)
Bed size 48 in (F-B)
Stroke 26 in
Stroke length 24 in
Daylight opening 36 in
Distance between posts 48 in (L-R)
Distance between posts 31 in (F-B)
Advance speed 280 IPM
Press speed 60 IPM
Return speed 360 IPM
Max pressure 2984 PSI
Motor power 100 HP
Main cylinder bore 16 in
Main cylinder rod 12 in
Main cylinder stroke 24 in
Reservoir capacity 400 gallon
Overall dimensions 72 in (L-R) x 48 in (F-B) x 146 in height
Floor standing
Top mounted hydraulics
Dual palm button stand
Light curtains front
Platen safety latch
Swing in die block
