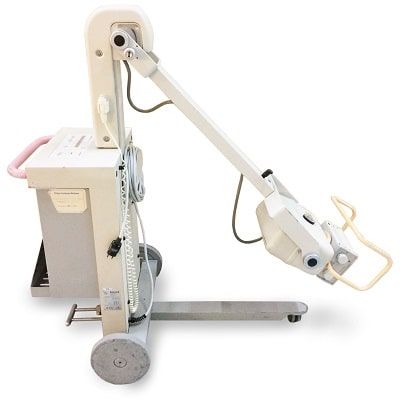

Philips Practix 33 Plus

Sub-modality: Mobile X-ray
Generator Type Microprocessor-controlled, single-tank converter X-ray generator
Maximum Output Power 3.3 kW (at 230 V); 1.5 kW (at 115 V)
Tube Voltage (kV) 40 kV to 110 kV in 1 kV steps
Tube Current (mA) 30 to 75 mA (at 230 V); 13 to 37 mA (at 115 V)
mAs Range 0.2 mAs to 250 mAs (at 230 V); 0.2 mAs to 200 mAs (at 115 V)
Exposure Time 3 ms to 4 s (up to 5s at 230V or 7.5s at 115V)
Focal Spot 1.5 mm nominal focal spot
X-Ray Tube Type Fixed anode (Tungsten target, 16° angle)
Anode Heat Capacity 28 kJ (40 kHu)
Mains Supply 115 V or 230 V (±10 % ), single-phase, 50/60 Hz
Collimator Light beam diaphragm with rotation
User Interface Keyboard with graphic LCD display
