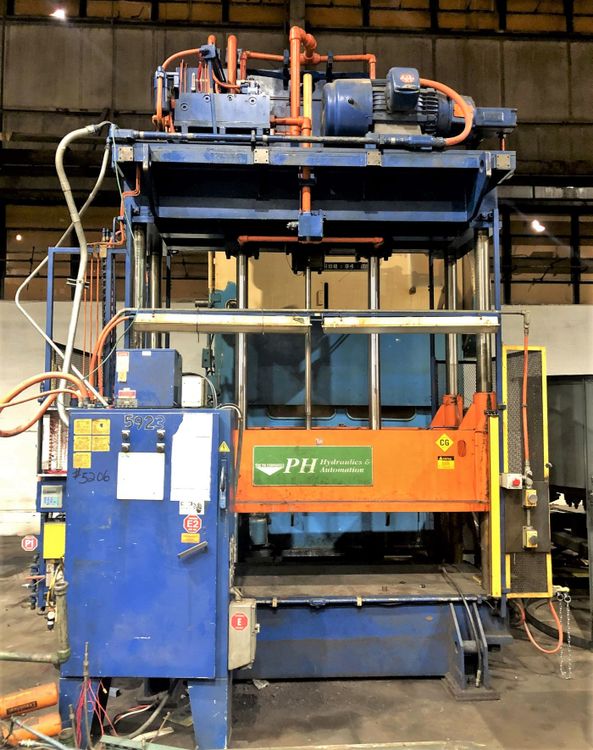

Phoenix 4C-75T 75 Ton

Press Force: 75 Ton
Capacity: 75 Ton @ 2650 psi
Max Stroke: 48 in
Max Daylight to Bed: 72 in
Max Shut Height: 34 in
Overall Bed & Ram Area: 115 x 42 in
Distance Between Posts: 101 x 26 in
Usable Bed Area: 101 x 42 in
Post Diameter: 4.5 in
Cylinder Bore: 6 in
Quantity of Cylinders: 2
Floor to Bed Height: 25 in
Press Controls: Allen-Bradley SLC
Hydraulic Pumps: Vickers Model 4535V6A30
Hydraulic Tank Capacity: 300 Gallon
Main Motor Power: 100 HP
Voltage: 230/460 V
Overall Dimensions: 156 x 72 x 204 in
Footprint: 97 x 64 in
Weight: 30000 lbs
2 Safety Blocks 65 in High Swing-In
Hydraulic Oil Recommendation: Mobile DTE 26
Grease Recommendation: Mobilith AW1
