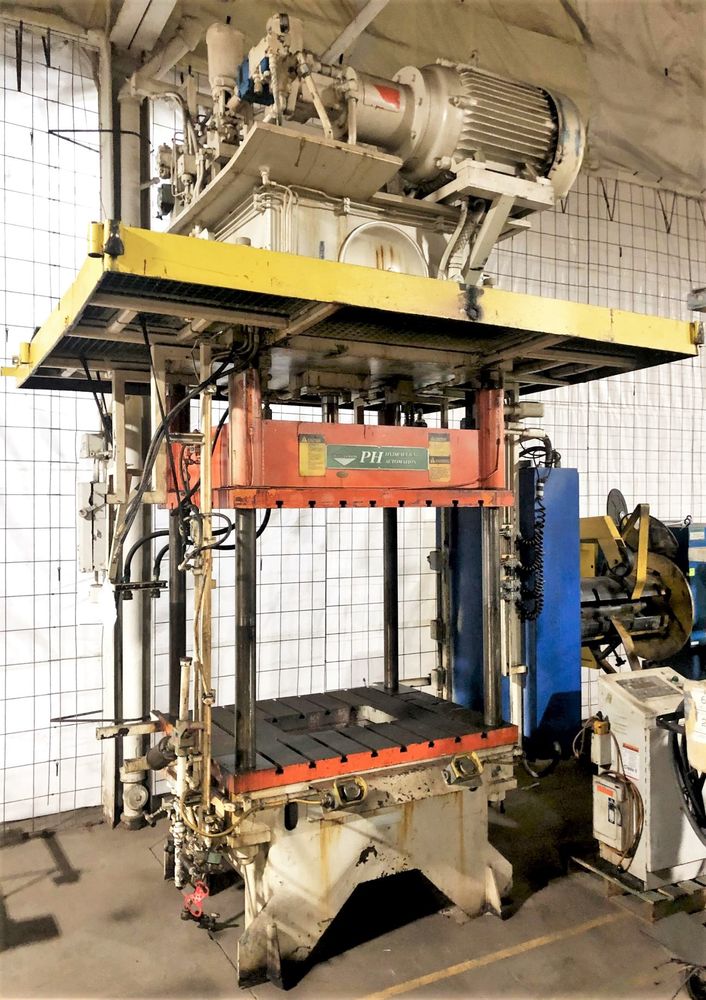

Phoenix 50T-4 50 TON

CAPACITY: 50 TON
MAX. STROKE: APPROX 20"
MAX. DAYLIGHT TO BED: 42"
DISTANCE BETWEEN POSTS: 48" X 36" (RL X FB)
POST SIZE: 4"
ALLEN-BRADLEY 1771-P7 PROGRAMMABLE CONTROLLER
Latch system on ram
BED & RAM AREA: 58" x 46" (rl x fb)
USABLE BED & RAM AREA: 48" X 46" (RL X FB)
Hole in bolster plate: 24" x 15" (rl x fb)
ROD SIZE: 3.5" DIA
CYLINDER SIZE: 6.5" DIA. BORE
EATON VICKERS PUMP 35V25A 11A22L
75 HP 480V-3-60 MOTOR
88 AMPS
ADVANCE SPEED: 1250 IPM
PRESS SPEED: 220 IPM
STRIP SPEED: 720 IPM
RETURN SPEED: 1000 IPM
OVERALL DIMENSIONS: 173" HIGH X 102" RL X 84" FB
