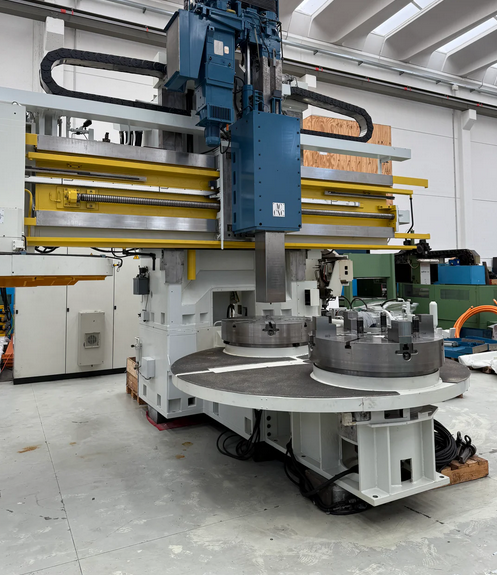

Pietro Carnaghi AFT 16 TM/SH Surface Plate Diameter: 1000 mm

X-Axis Travel: -1010 / +1010 mm
Y-Axis Travel: 600 mm
Z-Axis Travel: 1250 mm
C-Axis: 360°
Rapid Traverse: 10 m/min
Feeds: 0.1 - 3000 mm/min
Control: SIEMENS SINUMERIK 840 C
Swing Diameter: 1650 mm
Max Turning Height: 1100 mm
Table Load Capacity: 3000 kg
Milling Spindle Speed: 10 - 3000 rpm
Milling Motor Power: 31 kW
Torque: 1000 Nm
Spindle Nose: KM63
Tool Section: 40 mm
Table Speed: 5 - 800 rpm
Table Motor Power: 60 kW
40 Position Tool Magazine
2 Pallets
Voltage: 3x400 V / 50 Hz
Total Power Required: 196 kW
Machine Weight: 35000 kg
Machine Dimensions: 7225 x 8735 mm
Coolant System
Set of Toolholders
Chip Conveyor
Pallet Changing Device
Grinding Device Optional
