Pietro Carnaghi AP 809 TM Faceplate diameter 8000 mm

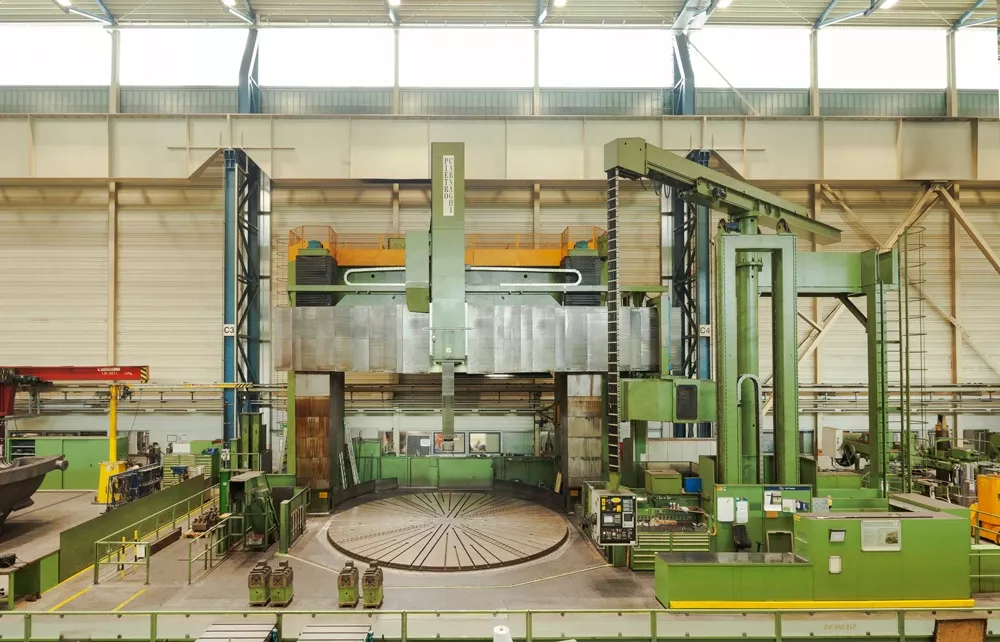

PIETRO CARNAGHI AP 809 TM
2002

Faceplate diameter 8000 mm
Swing diameter 8500 mm
Turning height 6550 mm
Crossrail vertical adjustment 4800 mm
Max workpiece weight 200000 kg
Faceplate speed range 1–42 rpm (stepless)
Max torque on faceplate 286000 Nm
Ram head dimension 400 x 400 mm
Z-axis travel 3200 mm
X-axis travel 10800 mm
Rapid traverse 10 m/min
Main drive motor 100 kW
Workpiece power 55 kW
Total power requirement 187 kW
Machine weight approx. 300000 kg
Machine dimensions approx. 23000 x 13000 x 12400 mm
CNC control Siemens 840 C

Hydrostatic guideways on X and Z axes
12-station tool changer for standard turning tools
Angular milling head with 1° indexing
C-axis for faceplate
U-axis for accessory adjustment
B-axis for angular milling head
Driven tools ISO 50 / 55 kW / 2000 rpm
Working area with camera control
Coolant device
Chip conveyor
KNOLL coolant system
Height-adjustable operator platform
