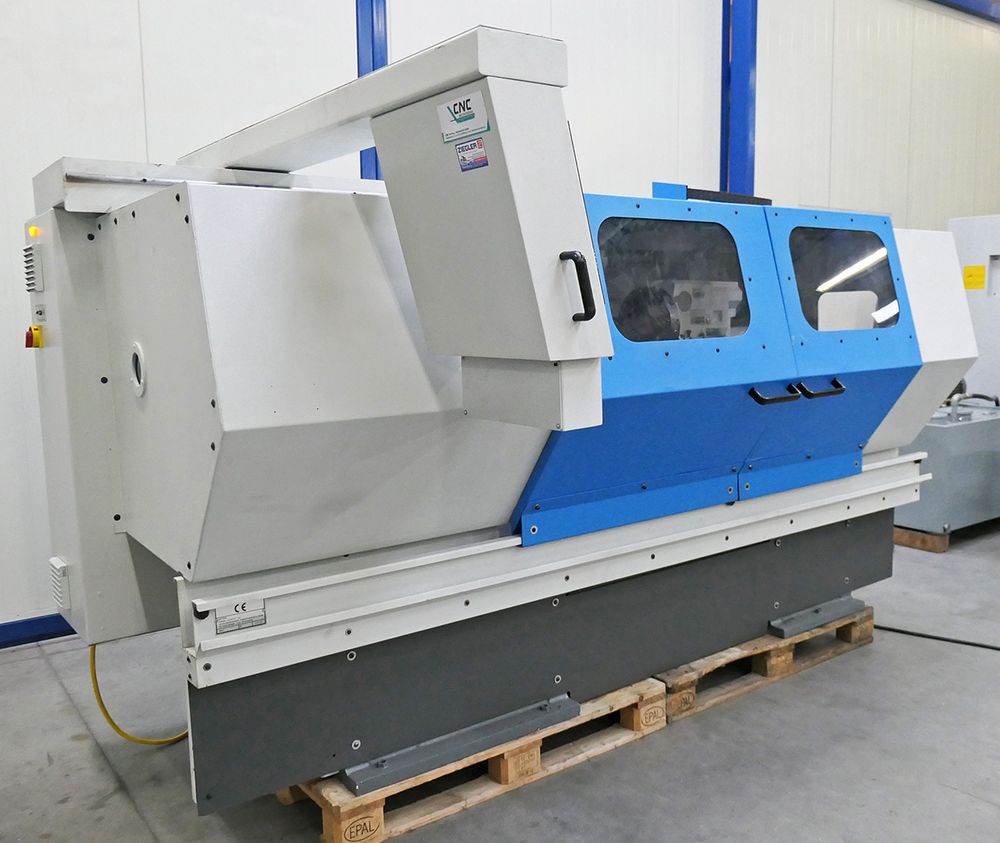

Pinacho CNC Pinacho Mustang 200,

Year of manufacture: 2001
Overhaul: 2023

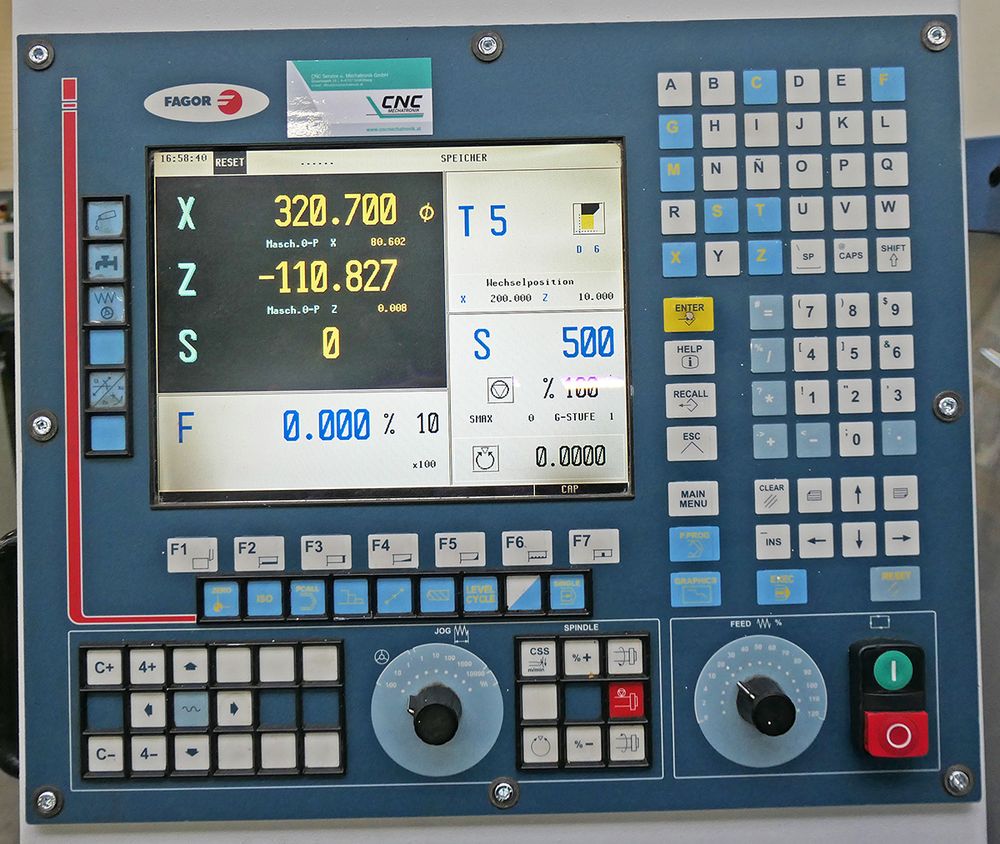

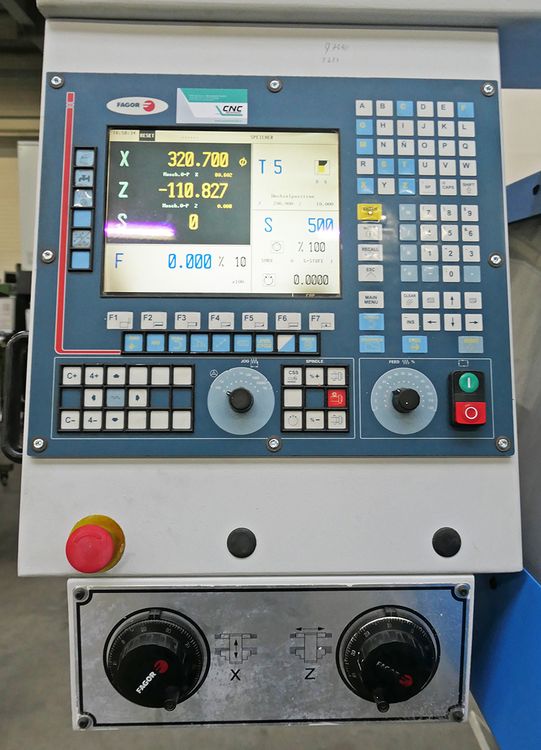

Control: Fagor 8055 CNC
Operating modes: Manual / Cycle-controlled

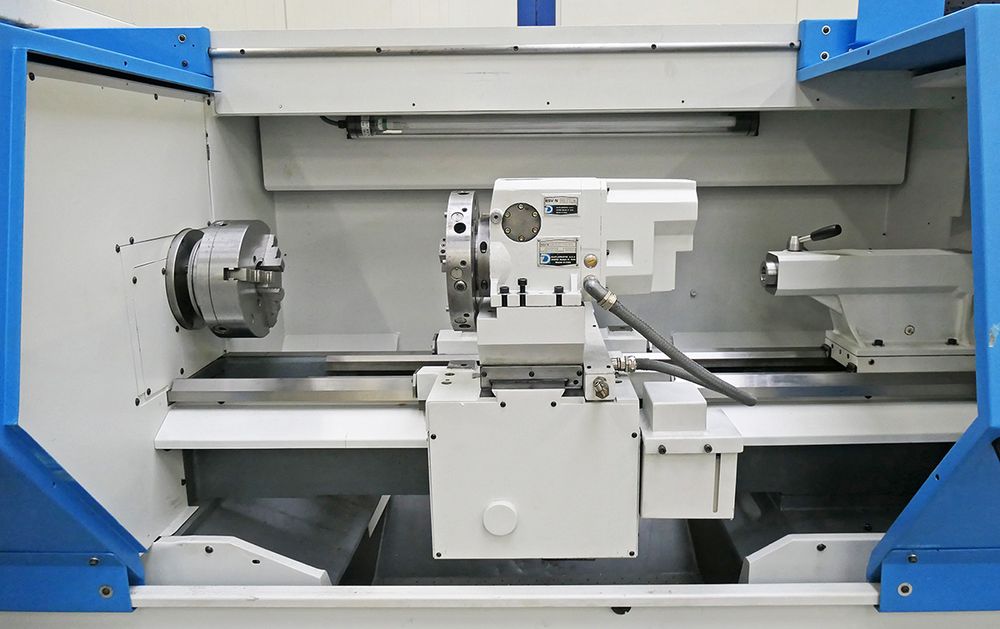

Tool turret: 8-station VDI30

Main dimensions
Center height: 200 mm
Center distance: 1000 mm
Turning diameter over bed: 400 mm
Turning diameter over longitudinal slide: 370 mm
Turning diameter over cross slide: 210 mm
Bed width: 300 mm

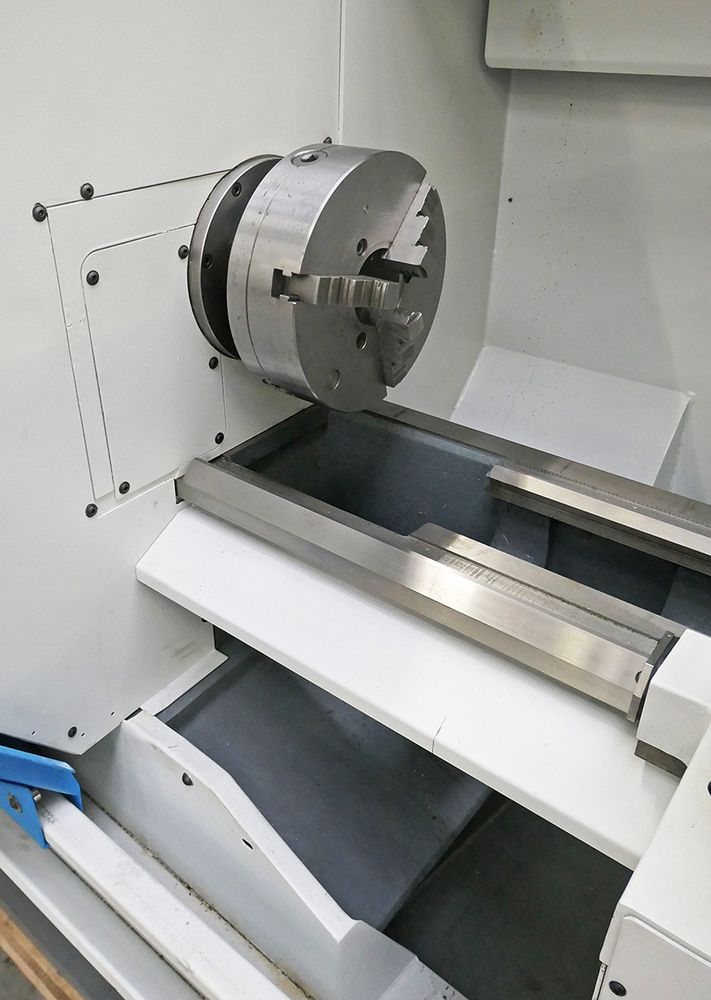

Spindle nose / Spindle
Spindle bore: 65 mm
Spindle nose: Camlock No. 6 / DIN 55027 No. 6
Spindle taper: Morse taper MK5
Spindle speeds: 2 ranges

Constant cutting speed:
0–750 rpm
750–3000 rpm

Feed rates
Working feed Z/X: 0 – 7000 mm/min
Rapid traverse Z/X: 10 m/min

Tailstock
Tailstock quill: 58 mm
Tailstock quill: 155 mm

Morse taper: 4
Motors
Main motor power: 7.5 kW
Torque DC motor Z-axis: 6.8 Nm
Torque DC motor X-axis: 3.4 Nm
Pump motor power: 0.57 kW

Machine size and weight
Machine weight: approx. 2300 kg
Dimensions (W × H × D): 2980 × 1730 × 1610 mm
