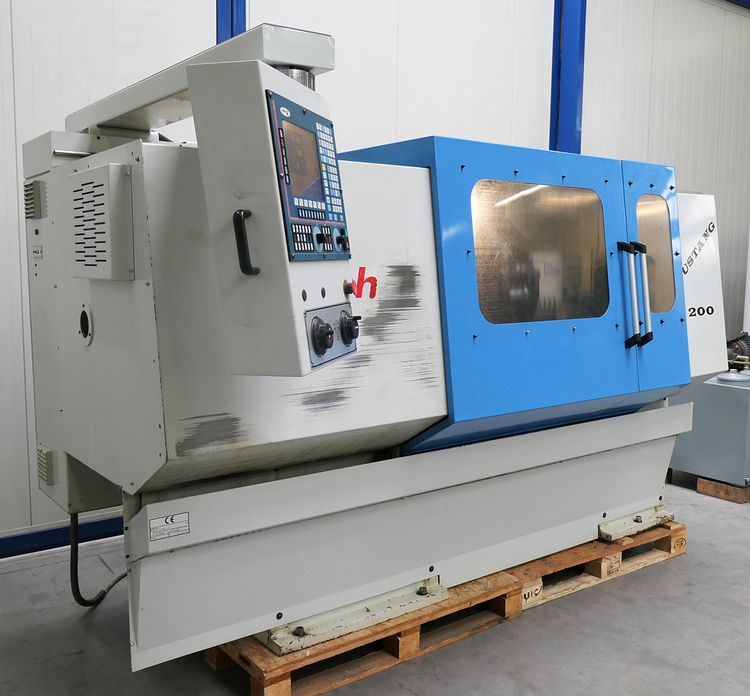

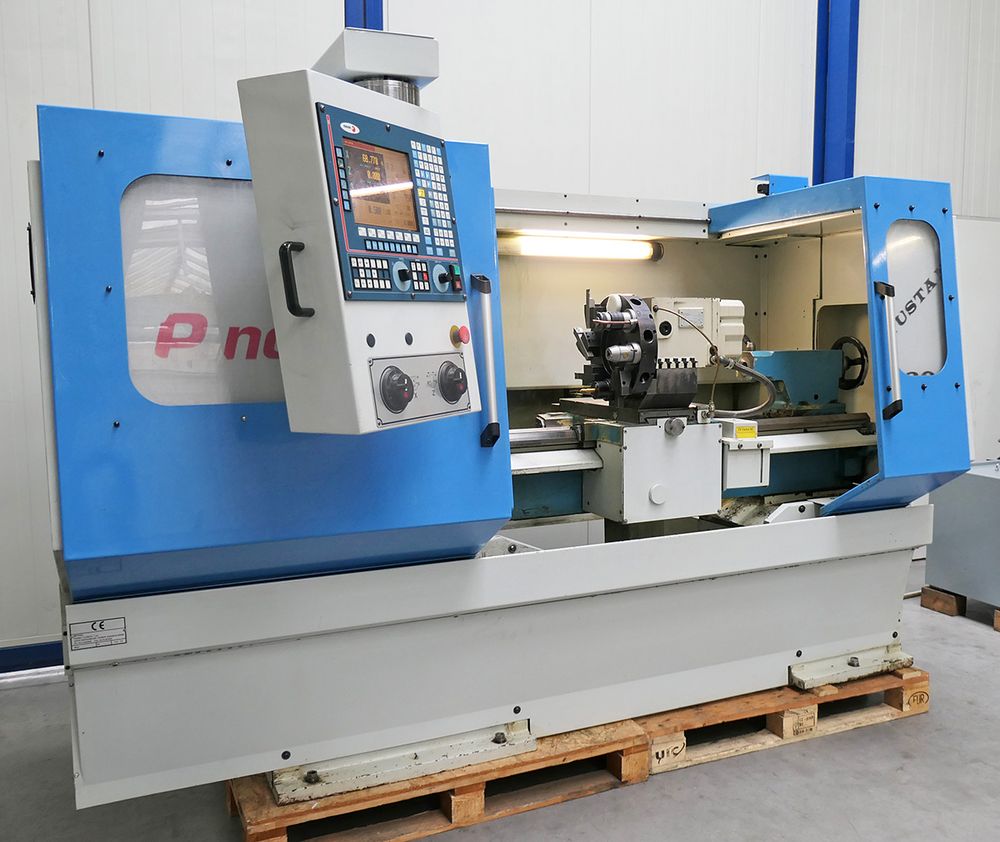

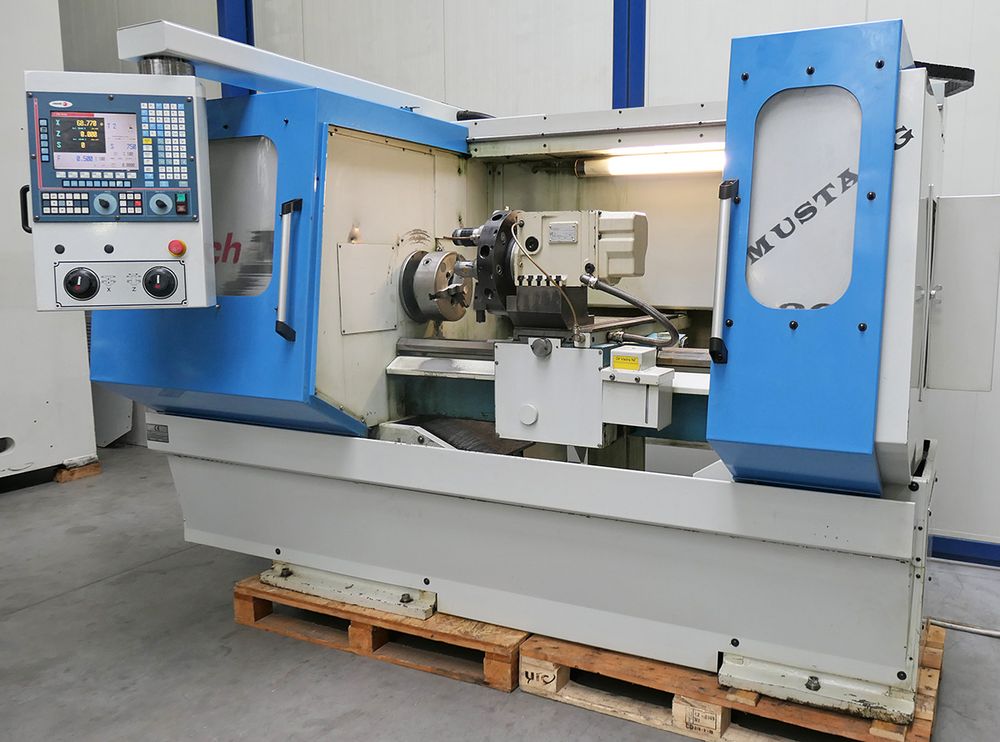

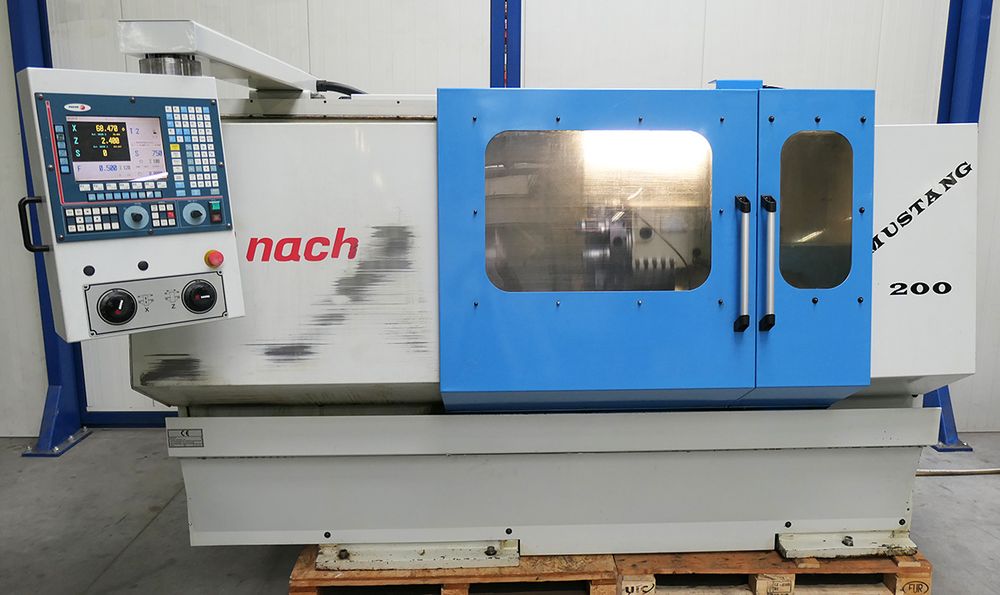

Pinacho Mustang 200 CNC
EUROPE (Western and Northern)
Manufacturer: Pinacho
Model: Mustang 200

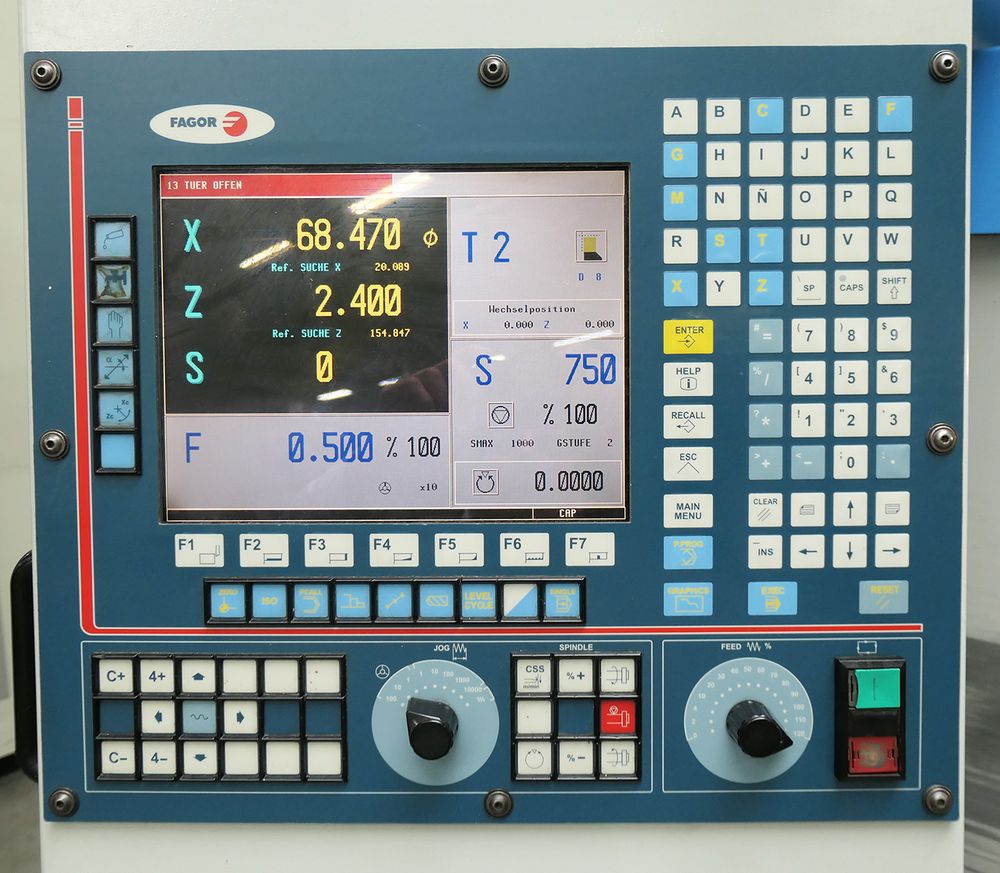

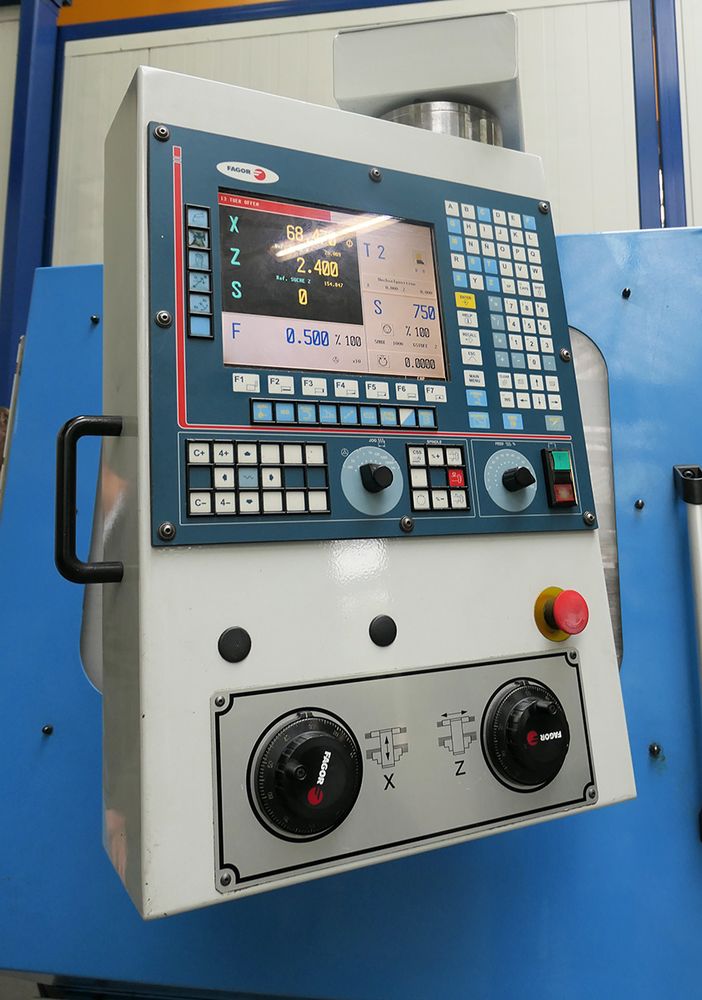

CNC control (e.g., Fagor) for manual and cycle-controlled machining

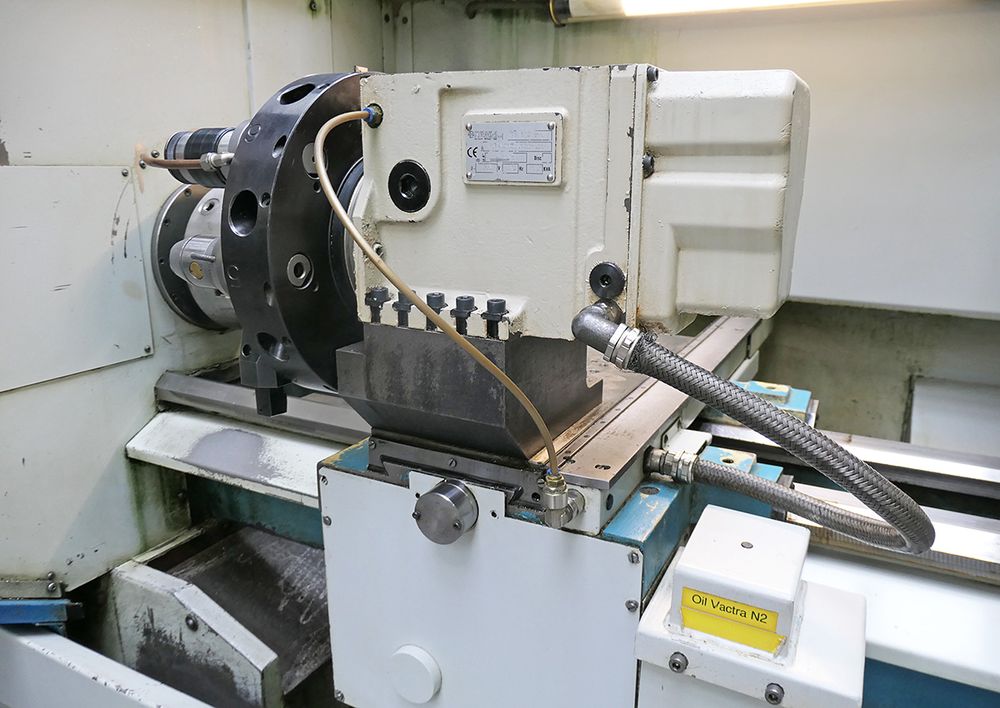

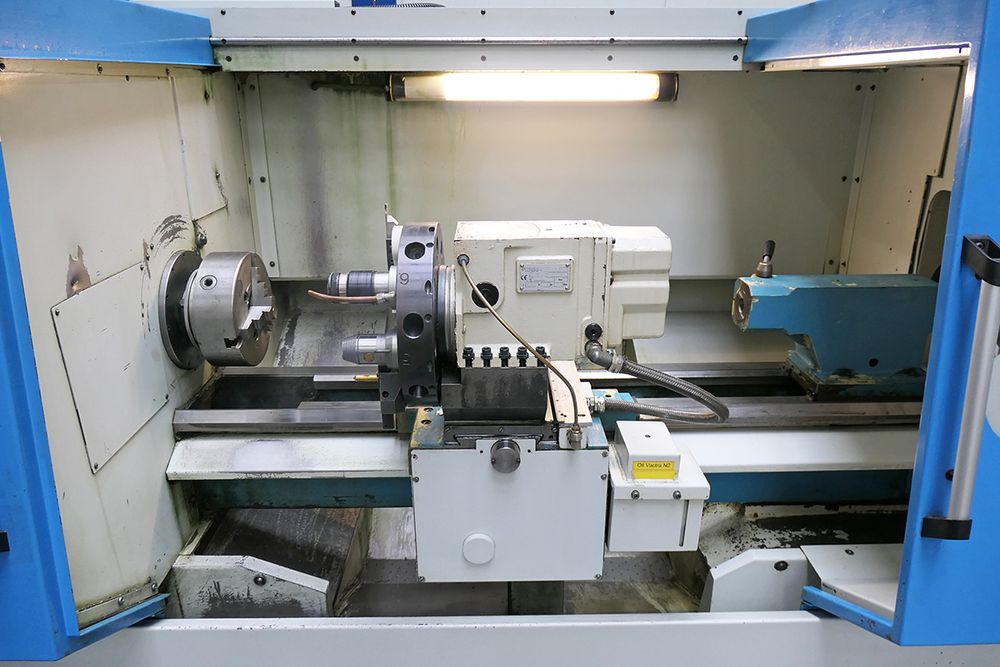

Automatic tool turret (8-station, VDI interface)
High repeatability and reliable performance
Technical data:
Max. turning length between centers: approx. 1000 mm
Max. turning diameter:
over bed: approx. 400 mm
over cross slide: approx. 210 mm
Center height: 200 mm
Spindle bore: 65 mm

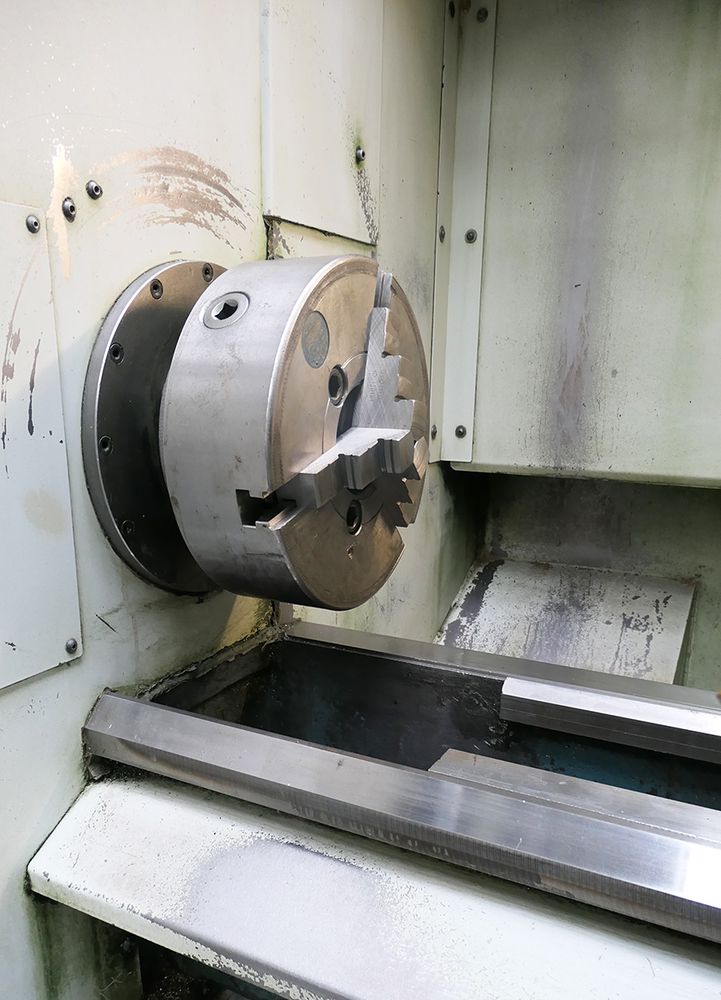

Spindle taper: Camlock DIN 55027-6
Speed range: up to approx. 3000 rpm
Main drive: approx. 7.5 kW
Tailstock with MT4 taper, quill travel approx. 155 mm
Machine weight: approx. 2200 kg
Condition & application: Robust industrial construction
Suitable for single-part and series production
Ideal for precision turned parts in steel, aluminum, and other materials Metals
