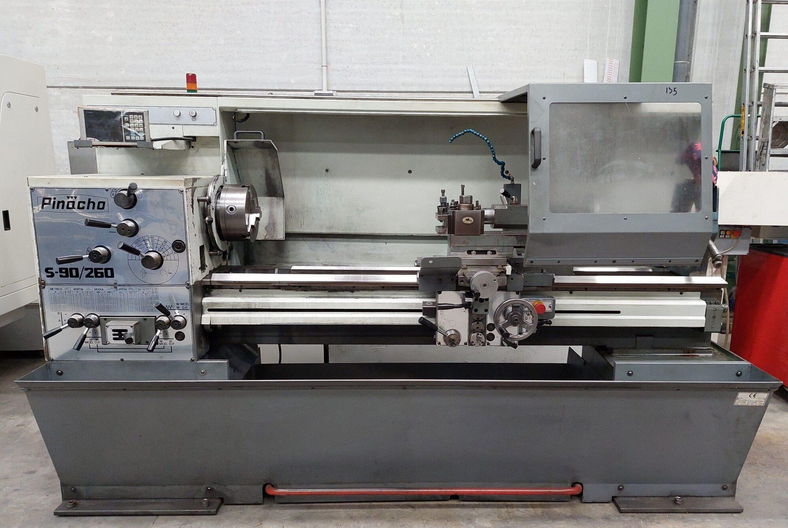

Pinacho Engine Lathe 1500 rpm S-90/260
Ref :
2746019-3-MT
Condition :
Used
Manufacturer :
Pinacho
Type :
Engine Lathe
Spindle Speed :
1500 rpm
Model :
S-90/260
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Distance between centers 1625 mm
Centers' height 260 mm
Max swing over bed 530 mm
Swing over cross slide 325 mm
Swing over gap 780 mm
Spindle hole diameter 68 mm
Gap length 220 mm
Spindle speeds 12, 30-1500 rpm
Engine power 5.5 kW
Approx machine weight 1615 kg
Machine dimensions 2860x1000x1730 mm
Readouts Fagor A 2 axes
3-jaw universal chuck Ø 250 mm
Turret Quick change
Steady rest Ø 200 mm
Tools According to photo
CE standards Yes
