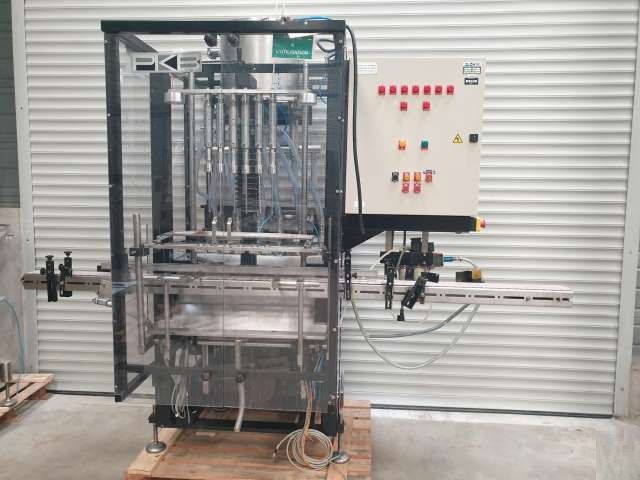

PKB DOL, FILLER

Weight : 900 kg
Dimensions : (L x W x H) 3.00 x 1.50 x 2.40 M

Automatic filler for glass or plastic bottles with dosing by volumetric pistons for liquid, viscous and foaming product.

Equipped:
- Plastic pallet conveyor width 90 mm - length 3000 mm.
- Dosing station with 6 volumetric pistons with needle valves.
- Filling station with 6 plunging nozzles with a diameter of 10 mm.
- Bottle centering station via the necks.
- Automatic bottle stop under the filling station.
- Control box and power cabinet.
- Electrical update with automaton and Omron touch screen, cost €8,000
- General training by motor-variator.
- Safety guards
- Stainless steel frame.

Current equipment:
- 6 stainless steel pistons of 350 ml (dosage from 50 to 350 ml).
- 6 stainless steel nozzles diameter 10 mm.

Maximum capacity:
Bottle diameter 100 mm - height 350 mm
Possibility of putting 1000 ml pistons

Maximum hourly production:
Approximately 4000 to 5000 bottles depending on volume and nature of the product.

Total electric power: 0.75 kW
Maximum compressed air pressure: 6 bars
