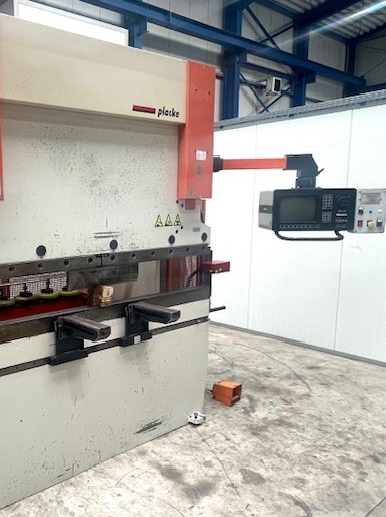

PLACKE OPB 3 60/2050 2000 60 t
Ref :
2755893-3-AW
Condition :
Used
Manufacturer :
-
Model :
PLACKE OPB 3 60/2050 2000
Pressure :
60 t
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Press Force 60 t
Chamfer Length 2050 mm
Distance Between Columns 1550 mm
Throat 255 mm
Stroke 165 mm
Daylight 475 mm
Working Feed 9.8 mm/sec
Return Speed 117 mm/sec
Adjustment Speed 150 mm/sec
Total Power Requirement 5.5 kW
Machine Weight 5,000 kg
Machine Dimensions 2300 x 1500 x 2470 mm
CNC Control DELEM DA65
Electric Backgauge X-axis 600 mm
Hydraulic Upper Tool Clamping
Front Light Barrier
Side and Rear Protective Grilles
Manually Adjustable Stop Bar Foldable (R+Z-axis)
Upper Tool
2x Support Arms
Machine Feet
Operating Instructions
