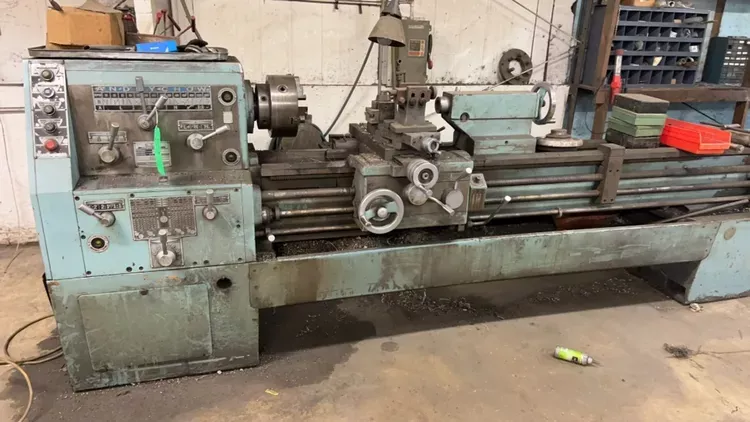

Polamco, Toolmex Engine Lathe 1,600 RPM TUG40

17/25" x 80"
Swing: 17.75"
Centers: 80"
Spindle bore: 2.06"
Power: 7.5 hp
RPM: 1,600
Swing over cross slide: 10"
Overall dimensions: 144" x 41"
Weight: 6,000 lbs
Taper attachment
Removable gap-type bed
Camlock D1-6 spindle nose
10" 3-jaw chuck with jaws
Tool post
Hardened and ground bed ways
Inch-metric threading
Carriage cross slide travel: 10.5"
Carriage top slide travel: 5"
Tailstock quill diameter: 3"
Tailstock quill travel: 7"
Tailstock spindle taper: #5 MT
Spindle speeds: 14, range 18 to 1,600 RPM
Carriage longitudinal feeds: 42, 0.0017 to 0.126 IPR
Cross-slide feeds: 42, 0.0008 to 0.063 IPR
Inch thread changes: 42, 0.75 to 56 TPI
Metric leads: 34, 0.5 to 28 mm
Module threads: 12, 0.5 to 3.5 M.P.
D.P. threads: 21, 8 to 56 DP
Main drive motor: 7.5 HP
