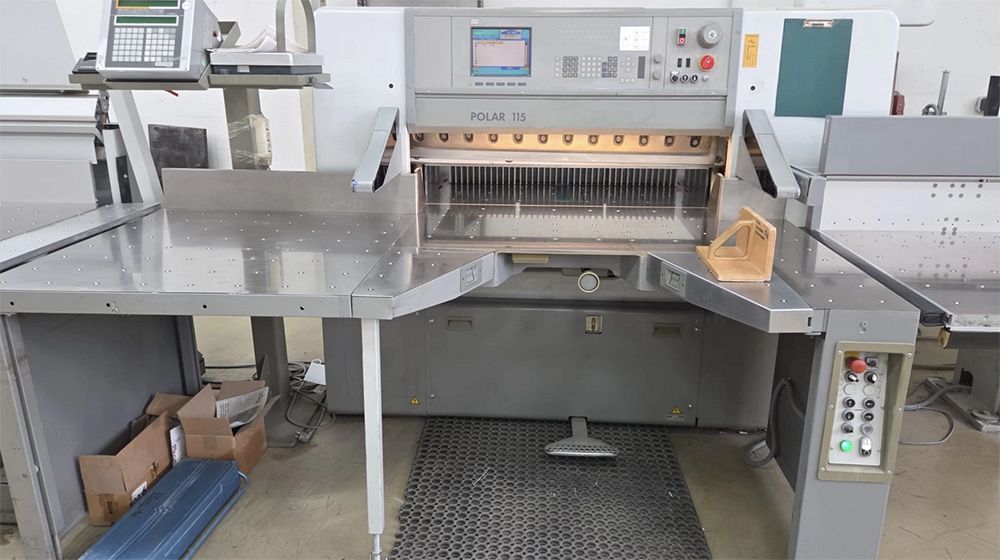

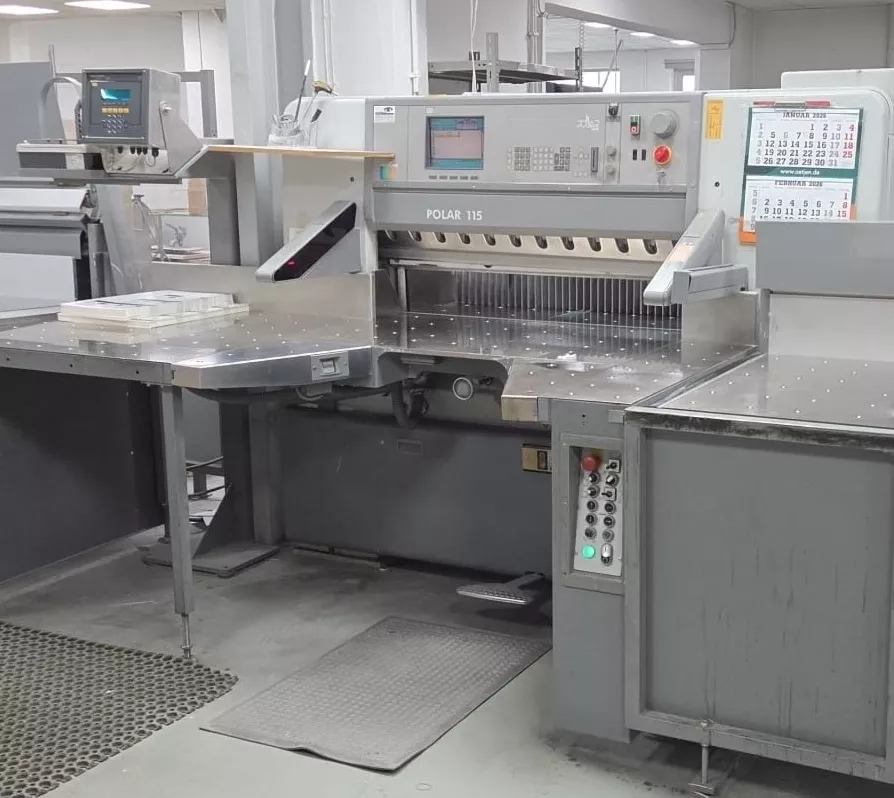

Polar 115 ED

Guillotine cutting machine
Type: Programmable guillotine paper cutting machine

Technical Specifications:
Control System (ED)
• Control type: POLAR ED computer control
• Display: TFT color screen with graphical interface
• Cutting width: 115 cm (45 inches)
• Max. sheet size: 115 × 115 cm
• Max. cutting height: approx. 165 mm
Clamp: Hydraulic, adjustable pressure
• Main table: Air table (air flotation system)
• Side tables: enlarged and Air-assisted (left and right)

Functions:
- Programmable cutting sequences (job memory)
- Visual cutting program preview
- Automatic backgauge positioning
- Compatibility with workflow systems (e.g., Compucut)

Features & Equipment:
• Programmable backgauge system
• Automatic positioning for repeat jobs
• Air flotation system (P1) for easy material handling
• High-precision cutting for print finishing
•Can be integrated into a full cutting line (stack lift, jogger, unloading system)

Safety Features:
• Infrared light barrier (photoelectric safety system)
• Two-hand operation for cutting release

Dimensions & Weight:
• Dimensions (L × W × H): approx. 2330 × 2330 × 2540 mm
• Weight: approx. 3200 kg

Applications:
• Cutting paper, cardboard, and printed materials
• Suitable for medium and large print formats (B1)
• Used in:
- Commercial printing houses
- Packaging production
- Finishing departments
