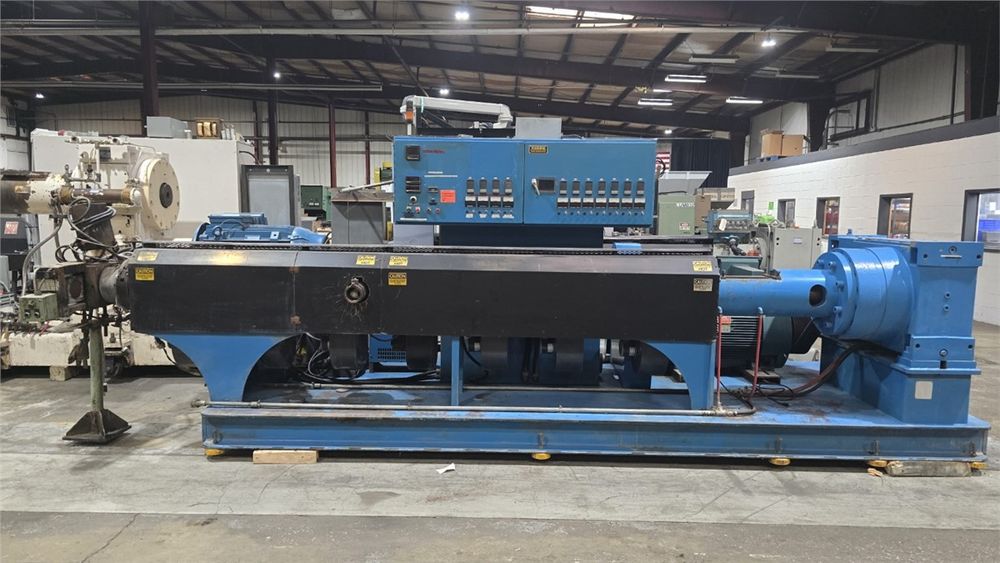

Polytruder 4.5" Extruder

4.5" Polytruder Extruder, L/D: 34:1, With Beringer Water Ring Pelletizing System with
Spin Dryer, Hydraulic Drive, and Control Panel
Single Screw, Air Cooled, Vented, 7 Barrel Zones, 4 Downstream Zones
12" x 5.5" Square Water Cooled Feed Throat
42" Centerline Height
250 HP Baldor AC Motor, Cat. No. ECP4408T-4
460/3/60, 276A
1785 RPM
449T Frame, TEFC
Hydraulic Drive System with Dedicated Control Panels
RKC CB400 Temperature Controllers, Start/Stop Drive Push Button Controls
Speed POT, Digital RPM And AMPS Readout
On/Off Toggle Switches for Pelletizer, Screen Plate,
Screen Changer, and Barrel Connector
Dedicated AC Amp Readouts for Each Downstream Zone
Dynisco UPR 700 Digital Pressure Transducer Readout
Beringer Water Ring Pelletizer
240/1/60
Max Operating Pressure: 6,500 PSI
Max Operating Temp: 550°F
Beringer Model 1.5 HP HPU
Pump: 2400/3000 PSI, 1725 RPM, 1.3 GPM
Motor: 2 HP @ 1725 RPM, 460/3/60, 3.1A, 145TC Frame, CW Rotation
2 Hp Carter Day CTX6 Spin Dryer, 1140 RPM
Comes With Conair Stainless Steel CL-15 Vacuum Receiver &
Hopper Fed Screw Feeder
Approximate Dimensions: 168" L x 64" W x 88" H
