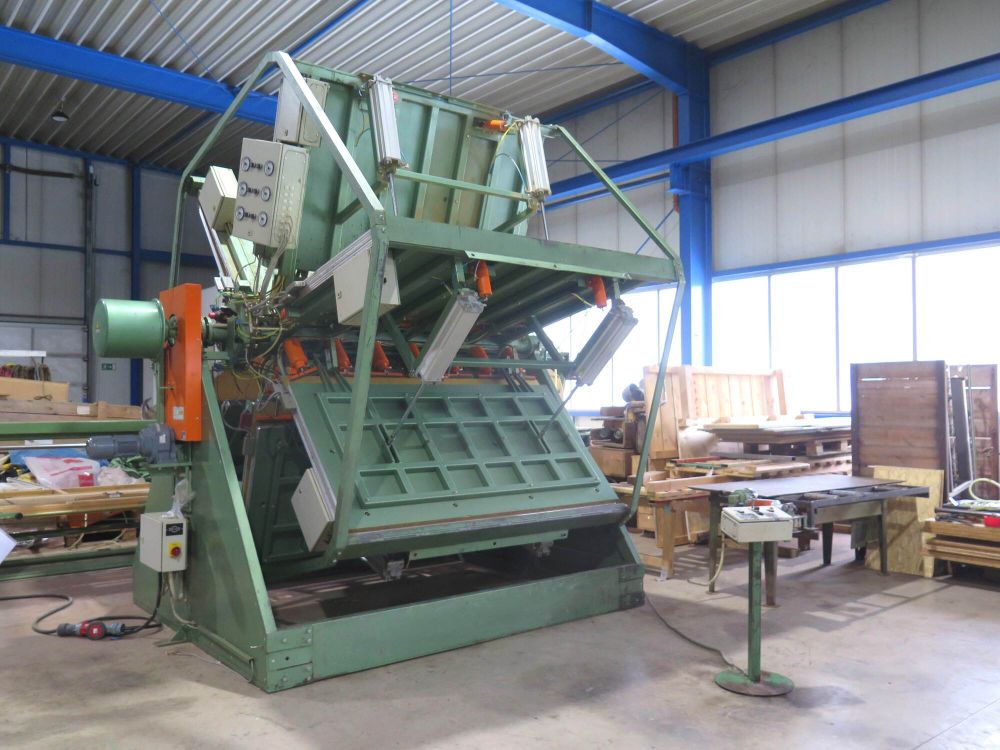

Polzer EVA - 6 E

Multi-Tier Gluing Press for Solid Wood
6 gluing levels, each with 2 special gold-anodized heating plates
Gluing dimensions: 2100 mm x 1100 mm
With glue dispensing station and roller conveyor
Maximum workpiece thickness: approx. 60 mm
For removal, the plate is pneumatically lifted by 2 cylinders

Per level:
2 electric heating plates, 2100 mm x 1100 mm, with gold-anodized plates
7 pneumatic pressure cylinders, 100 mm diameter,
100 mm stroke, 740 kg pressing force per cylinder at 10 bar,
Movable pressure plate: 250 mm x 40 mm
2 cylinders for actuating the upper heating plate
Infeed opening: 700 mm

2 electric heating plates
Each electric heating plate: 220/380V, 3 kW, thermostats 0– 120°C
Heating plates, 36 kW cut-in load
2 kW geared motor

Operating pressure 8–10 bar
Adjustable gluing temperature, ideally 50–65°C
Output approx. 50 m²/h
With protective grille
External dimensions approx. 4000 mm x 3600 mm x 3750 mm

Weight of gluing star frame with 2 plates: 2100 kg
Plus 4 plates, weight per plate: 594 kg
Plus gluing station: 192 kg
Plus protective grille: approx. 250 kg
