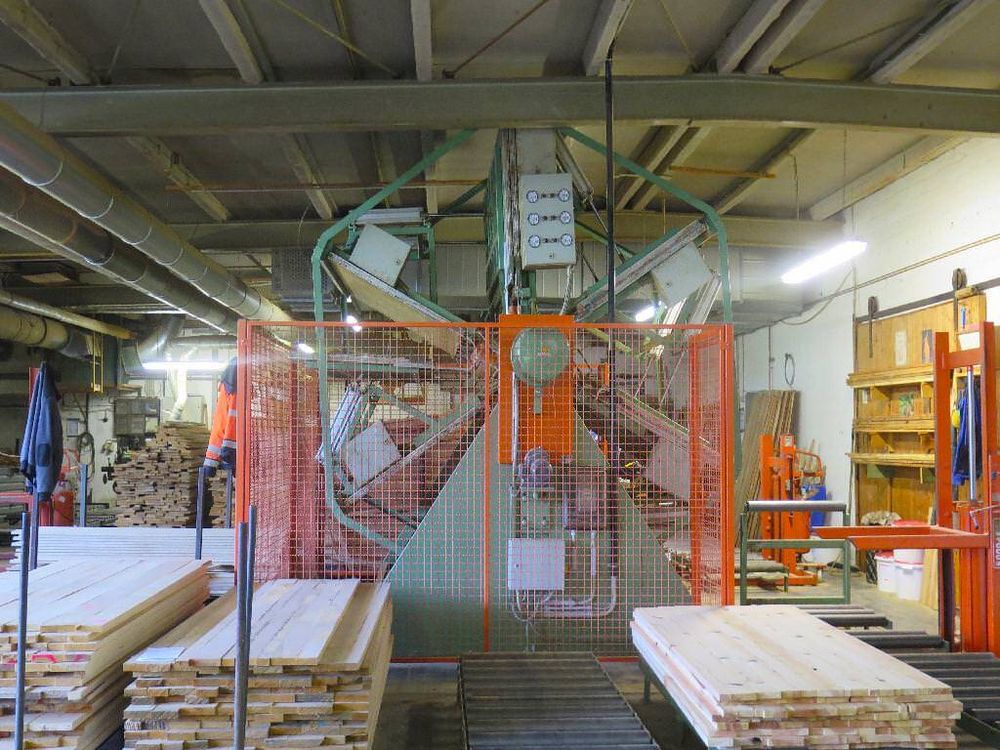

Polzer EVA

Gluing press
Gluing star with 6 gluing stations, each with 2 special heating plates
Gluing dimension 2100 mm x 1100 mm

With glue application station
With 2 lifting devices for loading and unloading the panels
With roller conveyor
Maximum workpiece thickness approx. 50 mm
The panel is lifted pneumatically for unloading

Per shelf:
7 pneumatic pressure cylinders 100 mm diameter,
100 mm stroke, pressure force 740 kg per cylinder,
movable pressure plate 250 mm x 40 mm
2 cylinders for actuating the upper heating plate
Insertion opening 700 mm
2 electric heating plates
Each electric heating plate 220/380V, 3 kW, thermostats 0 - 120°C

Operating pressure 8 - 10 bar
Gluing temperature adjustable, ideally 50-65°
Output approx. 50 m²/h
With protective grille
External dimensions approx. 4000 mm x 4000 mm x 3600 mm
