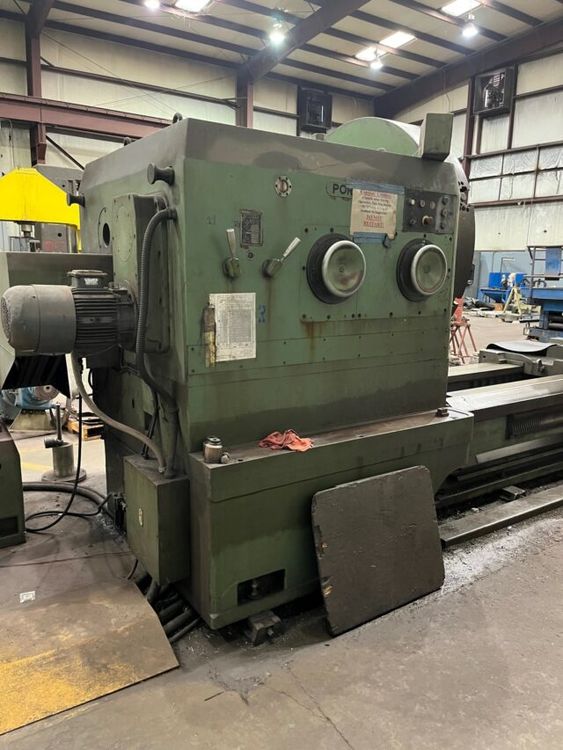

Poreba Engine Lathe 160 RPM TCG -200/10M

78″ Swing X 32′ Heavy Duty Conventional Lathe
Poreba TCG -200/10M
Year: 1990

OPERATOR CONTROLS ON CARRIAGE
INCH/METRIC THREADING
6-WAY POWER RAPID TRAVERSE
ROLLER TYPE STEADY RESTS
POWER COMPOUND
POWER TAILSTOCK AND QUILL
HARDENED & GROUND REPLACEABLE BEDWAYS
HARDENED AND GROUND GEARS & SPLINE SHAFTS
HEAVY DUTY MEEHANITE CASTING
100 HP MAIN DRIVE 220 VOLT
MAXIMUM SWING OVER BEDWAYS 78.74"
MAXIMUM SWING OVER CARRIAGE 66.14"
DISTANCE BETWEEN CENTERS 393.7"
SPINDLE SPEEDS 0.8-160 RPM
SPINDLE SPEEDS, NUMBER 24
SPINDLE SPEED RANGES 3
SPINDLE BORE 4.13"
SPINDLE TORQUE, MAXIMUM 63,000M
WIDTH OF BED 59.05"
LONGITUDINAL FEED RATES 0.007-6.29 IPR
OVERALL FEED RATES 0.44-12.59 IPM
RAPID TRAVERSE 157.48 IPM
THREADING, METRIC 1-192 MM
THREADING, INCH .125-30 TPI
FRONT BEARING DIAMETER 12.59"
TAILSTOCK DIAMETER 11.02"
TAILSTOCK QUILL TRAVEL 7.87"
TAILSTOCK QUILL RAPID TRAVERSE 11.81 IPM
TAILSTOCK RAPID TRAVERSE ON BED 59.05 IPM
WEIGHT CAPACITY BETWEEN CENTERS 66,000 LBS
WEIGHT CAPACITY WITH ONE STEADY REST 77,000 LBS
WEIGHT CAPACITY WITH TWO STEADY REST 88,000 LBS
