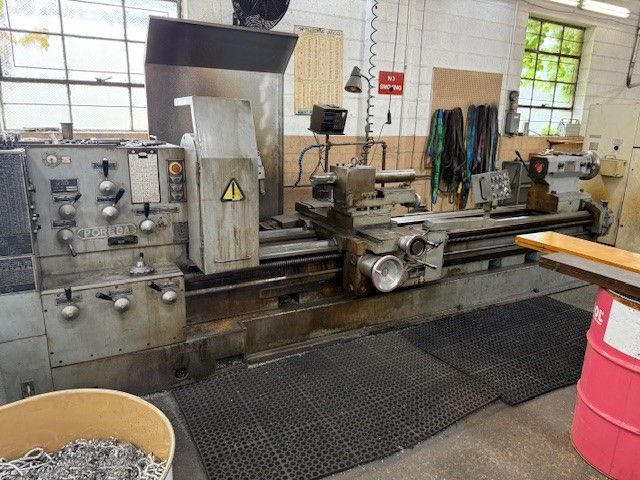

Poreba Engine Lathe 900 rpm (21 speeds) TRP93X3M

POREBA TRP93X3M
1994

Swing over bed 36.5"
Swing over cross slide 24.75"
Spindle nose Camlock A1-15
Hole through spindle 3.75"
Distance between centers 120"
Spindle speed range 9 - 900 rpm (21 speeds)
Longitudinal feed range 0.0043 - 0.249 ipr (70 feeds)
Cross feed range 0.0021 - 0.249 ipr (70 feeds)
Top slide feed range 0.001 - 0.062 ipr (70 feeds)
Inch threading range 0.5 - 30 tpi (56 threads)
Metric threading range 1 - 60 mm (62 threads)
Width of bed 23"
Tailstock spindle diameter 5.125"
Tailstock spindle taper #6 MT
Tailstock spindle travel 11.75"
Approximate floor space 74" x 220"
Approximate weight 17,500 lbs
Inch and metric threading capability
Taper turning attachment
Power feed to top slide for taper turning
Acu-Rite two axis digital readout
4-jaw chuck
3-jaw chuck
Quick change toolpost
Boring bar
15.75" capacity roller type steady rest
23" capacity roller type steady rest
Coolant system
6-way power and rapid traverse
Two speed tailstock
Solid base construction
Induction hardened and ground bedways
Two speed drive motor 23 / 36 hp
