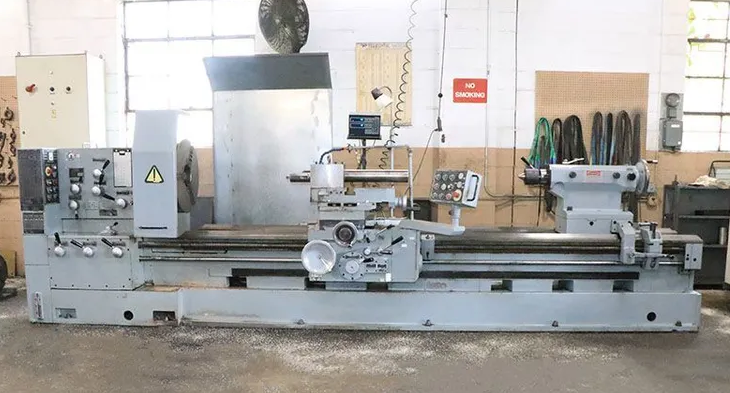

Poreba Engine Lathe 900 RPM TRP 93 X 3000MM

Swing Over Bed 36-1/2"
Swing Over Cross Slide 24-3/4"
Spindle Nose Camlock A1-15
Hole Through Spindle 3.75"
Distance Between Centers 120"
Spindle Speed Range 9 - 900 RPM
Longitudinal Feed Range .0043 - .249 IPR
Cross Feed Range .0021 - .249 IPR
Top Slide Range Feed .001 - .062 IPR
Inch Threading Range .5 - 30 TPI
Metric Threading Range 1 - 60 MM
Width of Bed 23"
Tailstock Spindle Diameter 5-1/8"
Tailstock Spindle Taper #6 MT
Tailstock Spindle Travel 11-3/4"
Approximate Floor Space 74" X 220"
Approximate Weight 17,500 LBS
Inch & Metric Threading Capability
Taper Turning Attachment
Power Feed to Top Slide for Taper Turning
Acu-Rite Two Axis Digital Readout
31" 4-Jaw Chuck
24-1/2" 3-Jaw Chuck
Toolpost
Boring Bar
15-3/4" Capacity Roller Type Steady Rest
23" Capacity Roller Type Steady Rest
Headstock Center Sleeve
Coolant System
6-Way Power & Rapid Traverse
Two Speed Tailstock
Solid Base Construction
Induction Hardened & Ground Bedways
23 / 36 Horse Power Two Speed Drive Motor
