Pro Eco SLITTING LINE Material thickness: 0.020" – 0.250"

Material width: 12" – 60"
Coil weight: 50000 lbs
Coil ID: 20" – 24"
Coil OD: 72"
Line direction: right to left
Entry coil car with hydraulic lift and traverse
Mandrel uncoiler with hydraulic expansion
Powered holddown roll
Feed-up motor
Pneumatic brake
Sliding base
Hydraulic peeler
Entry pinch rolls
Entry mechanical crop shear

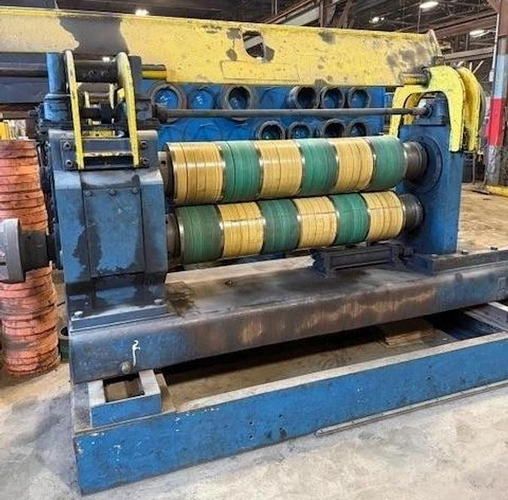

Slitting heads: 2 units
Arbor diameter: 8"
Arbor width: 70"
Adjustable arbors
Feed-up motor: 20 HP
Scrap winders: 2 units
Heavy duty design
Powered open and close
Recoiler with powered drum
Hydraulic push-off
Powered overarm separator
Recoiler motor: 125 HP
Exit coil car with hydraulic lift and traverse
Electrical system
Hydraulic system
Control system
Knives and tooling
