SMS Demag / Pro Eco Multi Blank CTL Line

Material Thickness: 0.010" – 0.135"
Yield Strength: 30,000 – 120,000 PSI
Shear Strength: up to 120,000 PSI
Maximum Coil Weight: 80,000 lb
Strip Width Entry: 18" – 74"
Strip Width Exit: 18" – 72"
Coil O.D.: 40" – 84"
Coil I.D.: 20" – 24"
Cut Length: 16" – 240"
Reject Length Max: 86"
Stack Weight Max: 20,000 lb
Stack Height Max: 24"
Line Speed: up to 200 FPM
Electrical Supply: 480/3/60
Control Supply: 120/1/60
Air Supply: 80 PSI
Hydraulic Design Pressure: 1,650 PSI
Hydraulic Working Pressure: 1,500 PSI
Passline Height Entry: 58"
Passline Height Exit: 18"

4 arm turnstile
Power rotation
C-hook slot 6" x 12"
Entry coil car
Self-contained hydraulic unit
Single mandrel uncoiler
Hydraulic expansion
Water cooled brake
Sliding base
Holddown roll
Outboard support arm
Automatic center guide control
Peeler table
Driven pinch rolls
Hydraulic crop shear
Scrap conveyor
Leveler 5 HI (17 rolls)
Cassette type roll change
300 HP drive
Carryover table
Leveler 5 HI (19 rolls)
Cassette type roll change
250 HP drive
Inspection table
Speed reference roll
Mechanical centering guides
CNC slitter head
Automatic tooling setup
9" diameter arbors
DC drive motor
Scrap choppers
Scrap discharge conveyor
Loop pit equipment
Squaring guides
Precision roll feed unit
Reciprocating flying shear
250 HP drive
Reject conveyor
Runout conveyor
Reject cart
Automatic air stacker
Powered width adjustment
Powered length adjustment
Pallet feed system
Scissor lift stacking table
Storage conveyor
Water cooling unit

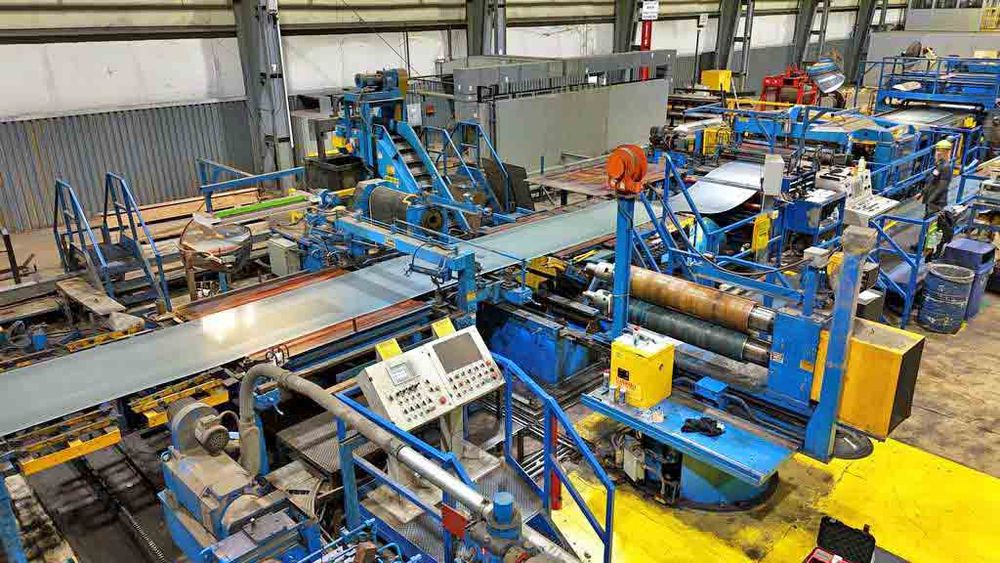

Line installed and running
