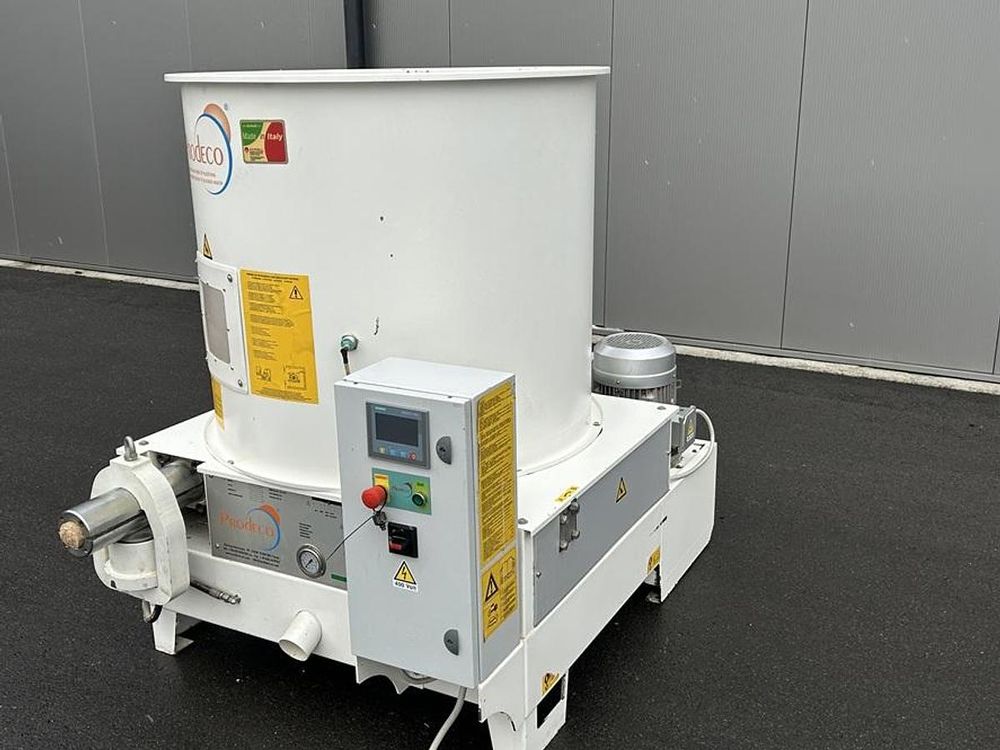

Prodeco E60 ECO Briquette press

Height 1510mm
Length 1700 mm
Depth 1170 mm
Weight Kg 650.
Operating hours: 1004

FEATURES:
Oil-dynamic machine.
Briquette diameter 60 mm.
Kw 5.5 IE-2 (High Efficiency) engine.
Production 15/70 Kg/h.
Cylinder Ø 1000 mm.
No. 7 cycles per minute.
Number 3 pistons.
Number 1 one-piece aims.
Maximum length of the Briquette 50 mm.
Timed preheating device, for working situations in harsh climates.
Sensitive probe.
Oil level probe in the reservoir and for temperature.
Viewfinder.
End-of-cycle device.
Tap head.
Electronic pressure gauge for pump pressure.
Complete electrical cabinet for SIEMENS PLC Touch Screen.
Voltage 400V-50 Hz.
