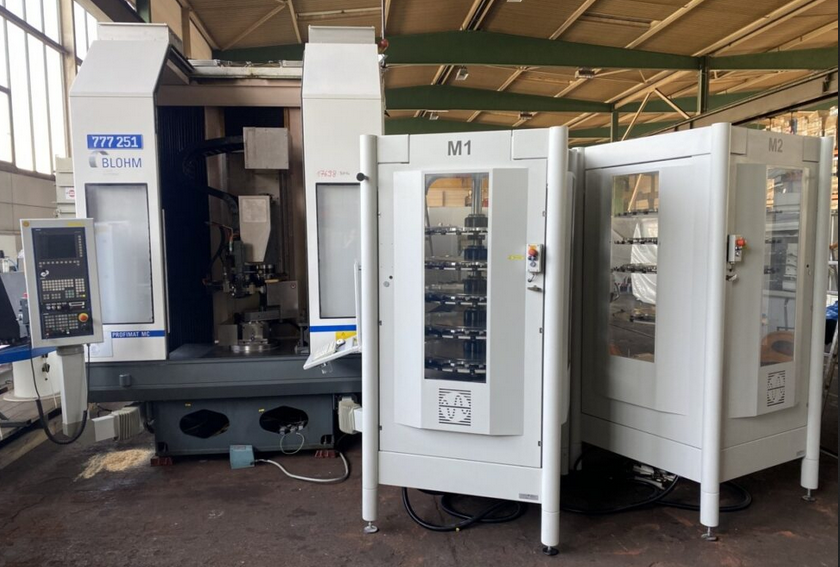

Blohm, Profimat MC 610 S

X axis: 520 mm
Y axis: 550 mm
Z axis: 1000 mm
V axis: 166 mm
A axis: +110 / -5 °

Control: SINUMERIK 840 D
5 axis profile grinding machine
Double dividing head B-C axis
V-axis coolant nozzles
EROWA tool changing device
Fire extinguishing device
Renishaw probe prepared
Without host computer for workpiece-tool management
Without coolant device
Tool taper: HSK-A 63
Spindle speed: 0 - 12000 rpm
Grinding motor power: 35.00 kW
Grinding wheel diameter min/max: 100 / 300 mm
Grinding wheel width: 60 mm
Feed X axis: 4 - 6000 mm/min
Feed Y axis: 4 - 4000 mm/min
Feed Z axis: 30 - 25000 mm/min
Grinding length: 1025 mm
Grinding width: 520 mm
Distance grinding spindle to table min/max: 473.5 - 1023.5 mm
Table dimensions: 1400 x 874 mm
Workpiece weight: 30 kg
Total power requirement: 100.00 kW
