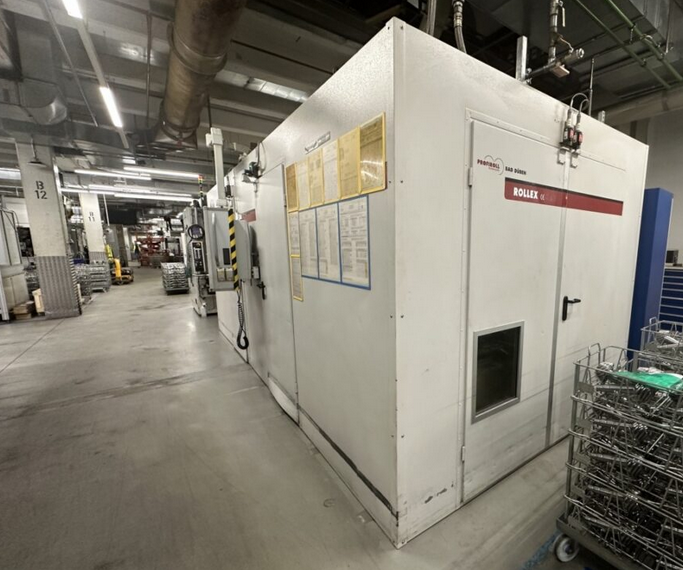

Profiroll BAD DÜBEN ROLLEX Thread Rolling Machine
Ref :
2800564-3-AW
Condition :
Used
Manufacturer :
Profiroll
Model :
BAD DÜBEN ROLLEX
Short Description :
Thread Rolling Machine
Year(s) :
2007
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Pressure: 20 - 300 kN
Control: Siemens 840D CNC
Rolling Slide Adjustment: 50 mm
Rolling Spindle Diameter: 120 mm
Roll Spindle Height Above Machine Bed: 200 mm
Spindle Speed: 0 - 50 RPM
Taper Length of Roll Spindle: 200 mm
Torque per Rolling Spindle: 2700 Nm
Power Capacity: 2 x 8.4 kW
Distance Between Rolling Spindles: 271 - 368 mm
Rolling Tool Outer Diameter: Max 300 mm
Total Power Requirement: 26 kW
Machine Weight: Approx. 7.1 t
Machine Dimensions: 9.70 x 4.50 x 3.80 m
Hydraulic Rolling Process
CNC Gear Cold Rolling / Thread Rolling Machine
Complete Housing
Felsomat Loader Cell
