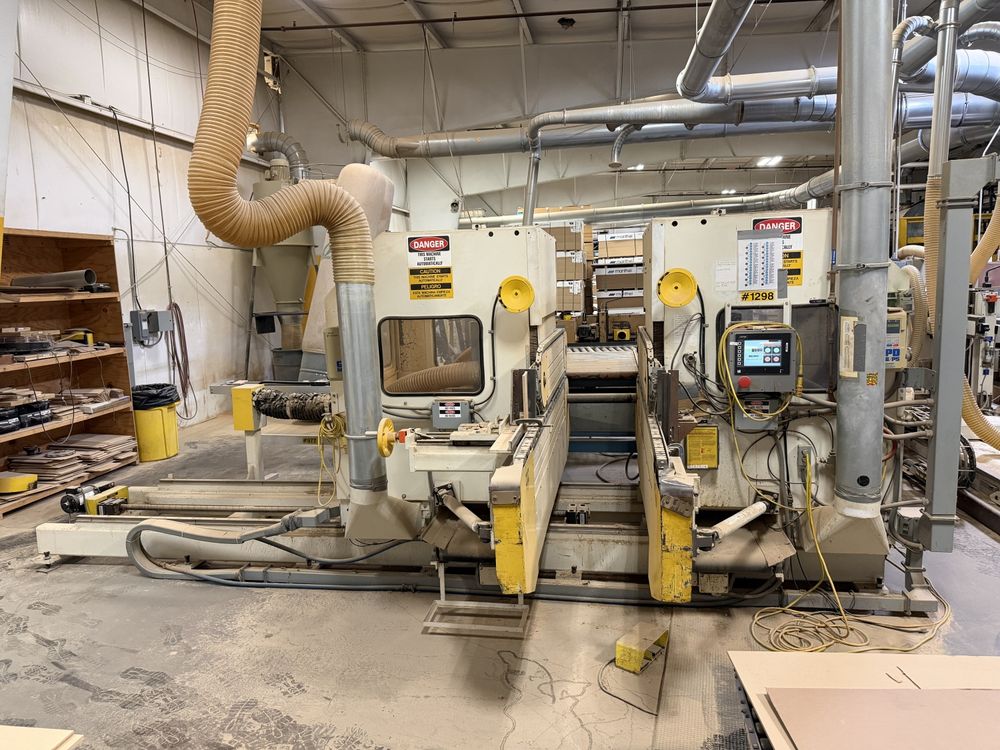

Progressive Systems Double End Tenoner

Maximum Width Capacity: 96" to Outside of Feed Chains Lay-Up Area: 36"
First Station Trims Saws, 10 HP Each, Tilting
Second Station: High-Speed Jump Copes, Electro Spindles Approx. 7.5HP with Yaskawa Drives
Left-Hand Traverse via 3 HP Motor
Feed Drive: 5 HP Motor
Variable Speed Feed
1-3/4" Wide Multi-Vee Feed Chains
Flip-up Feed Lugs Spaced at 10" On-Centers
Urethane Block Chain Hold-Downs
Scrap Removal Conveyors on each side 16” Wide Belts
Sound Enclosure
460v, 3ph
