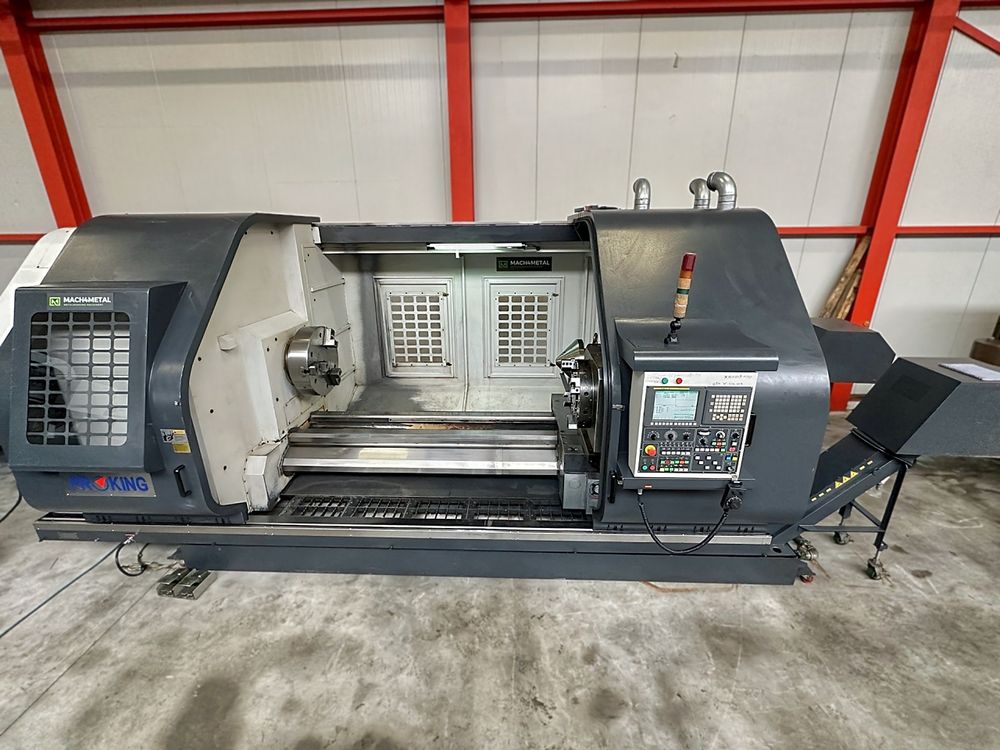

Proking FANUC 0i-TF 700 rpm LC45 06020 3 Axis

Z-axis travel: 2000 mm
C-axis positioning accuracy: 0.001°
CNC control: FANUC 0i-TF
Swing over turning slide: 1135 mm
Swing over cross slide: 760 mm
Spindle bore: 153 mm
Main spindle speed range: 7–700 rpm
Main spindle motor power: 30/37 kW
Live tooling spindle speed: 0–5000 rpm
Live tooling motor power: 9 kW
Hydraulic main chuck diameter: 800 mm
Tool turret capacity: 12 VDI stations
Turret configuration: 1 turret
Maximum workpiece weight: 3500 kg
Chip conveyor: 2 units
Spindle working hours: 3032 h
Machine length: 5720 mm
Machine width: 2766 mm
Machine height: 2520 mm
Machine weight: 12000 kg
