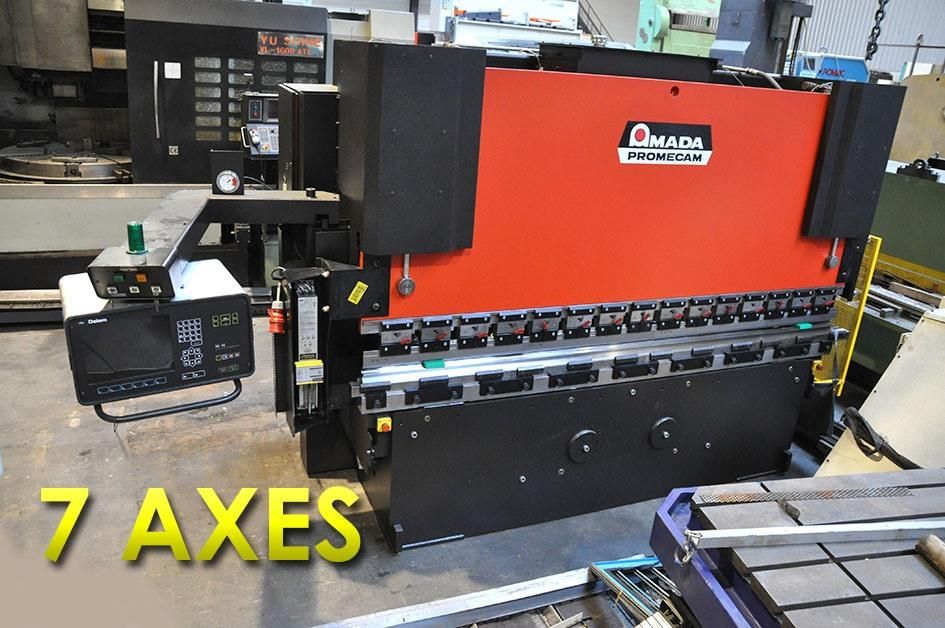

Amada, Promecam HFB 125 ton x 3140 mm CNC

Amada Promecam HFB 125 ton x 3140 mm CNC

Capacity 125 ton x 3140 mm
Backgauge CNC
Control Delem DA 58 Graphic
Passage between uprights 2700 mm
Max stroke 180 mm
Depth of throat 410 mm
Table width 90 mm
Locking speed 100 mm/sec
Working speed 8 mm/sec
Returning speed 80 mm/sec
Electric motor (power) 11 kW
Power needed 380V
Length 3630 mm
Depth 2070 mm
Height 2820 mm
Weight 7,4 ton

Additional info
7 axes: X - X1 - X2 - R - Z - Y1 - Y2
Bombation in table
Fiessler Laser security
Machine set up in accordance with French rules
