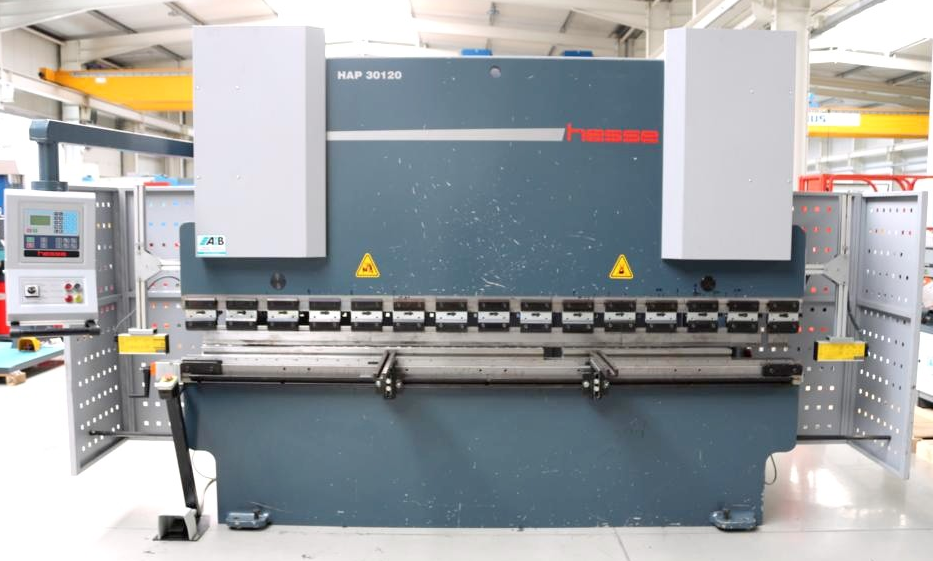

Durma HAP 30.120 120 t

Pressure: 120 t
Chamfer length: 3050 mm
Distance between columns: 2550 mm
Stroke of upper beam: 155 mm
Throat: 350 mm
Adjustment speed: 100 mm/sec
Working feed: 9.0 mm/sec
Return speed: 77.0 mm/sec
Control: ENC 310
Work height max.: 878 mm
Table width: 104 mm
Oil volume: 150 l
Total power requirement: 11.0 kW
Weight: 7260 kg
Range L-W-H: 4150 x 2150 x 2600 mm

NC electro-hydraulic press brake
With DURMA NC control "ENC 310"
128x64 pixel LCD display, illuminated
30 programs with 20 steps each
Manual/semi-automatic/automatic operating mode selectable
Pivoting control panel, front left
NC-controlled axes: Y1 + Y2 + X
NC electro-motorized backgauge (X axis)
With 2x manually adjustable stop fingers
Including lateral and height adjustment (Z + R axes)
FIESSLER laser safety device at the front
Manual bending table crowning
Adjustment via hand crank
With analog value display
AMADA/PROMECAM upper tool holder
With upper wedge crowning & quick-change adapter
Split Deer-foot upper tool (AMADA)
AMADA/PROMECAM lower tool holder
Split 4V universal die, in the die shoe
2x front support arms
Side guard (hinged doors)
Rear guard (hinged door)
1x freely movable foot switch
Operating instructions (PDF)
