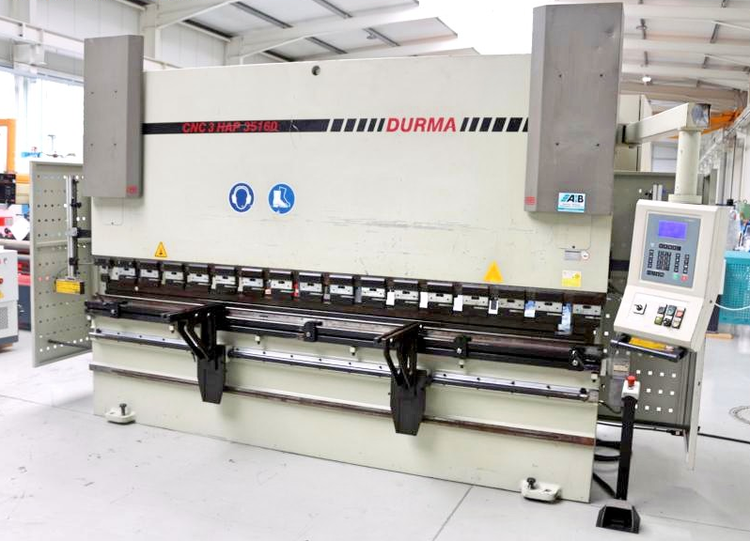

Durma CNC3 HAP 35.160 160 t

Press force: 160 t
Bending length: 3550 mm
Distance between columns: 3100 mm
Daylight opening: 395 mm
Stroke of upper beam: 200 mm
Throat depth: 350 mm
Adjustment speed: 100 mm/sec
Working speed: 9.0 mm/sec
Return speed: 86.0 mm/sec
Max work height: approx. 950 mm
Table width: 125 mm
Control: CYBELEC DNC 60
Oil volume: 150 l
Total power requirement: 15.0 kW
Machine weight: 10800 kg
Machine dimensions (L x W x H): 4700 x 2100 x 2700 mm
Electro-hydraulic CNC press brake
Pivoting control panel
Numerical control unit
Tool and program library
CNC-controlled axes: Y1, Y2, X
CNC electro-motorized backgauge (X axis)
2 manually adjustable stop fingers (R and Z axes)
CNC under-table crowning
Upper tool holder with upper wedge crowning
Split Rehfuß upper tool (AMADA)
Split 4V universal die (AMADA)
2 front sliding support arms with sliding system
Side guards with pivoting doors
Rear light barrier safety device
Rear machine light
Movable foot pedal
Operating instructions included
