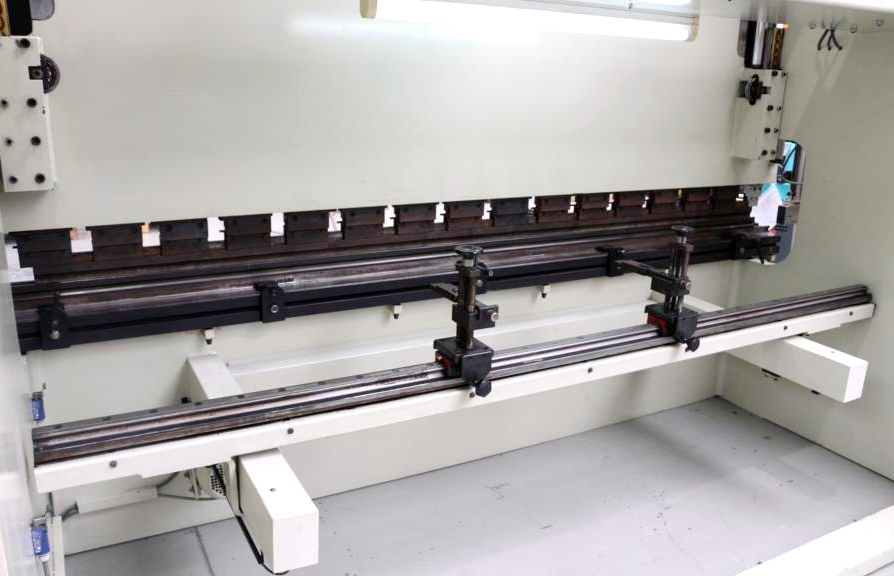

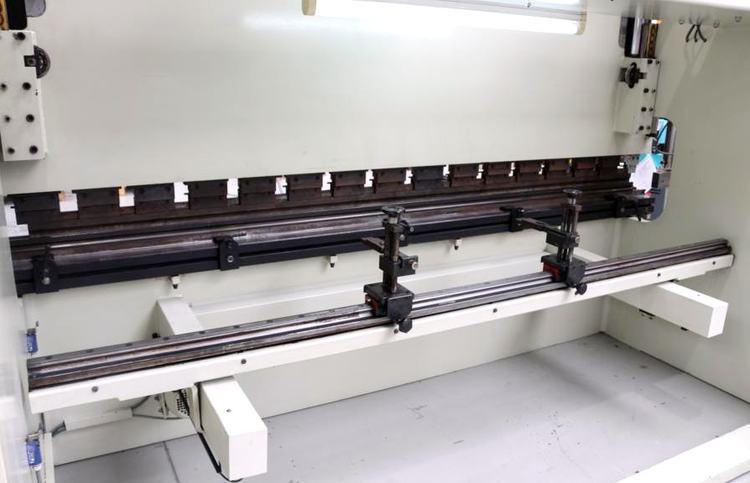

Durma CNC3 HAP 35.160 160 t

Press force 160 t
Chamfer length 3550 mm
Distance between columns 3100 mm
Daylight 395 mm
Stroke of upper beam 200 mm
Throat depth 350 mm
Adjustment speed 100 mm/sec
Working feed 9.0 mm/sec
Return speed 86.0 mm/sec
Maximum work height approx. 950 mm
Table width 125 mm
Control CYBELEC DNC 60
Oil volume 150 l
Total power requirement 15.0 kW
Weight 10,800 kg
Dimensions L-W-H 4700 × 2100 × 2700 mm
Electro-hydraulic CNC press brake
DELEM CNC control DNC60
Pivoting control panel front right
Numerical control unit
Tool and program library
CNC-controlled axes Y1 + Y2 + X + CNC crowning
CNC electro-motorized backgauge (X axis)
2 manually adjustable stop fingers (R + Z axes)
CNC under-table crowning
FIESSLER front safety device
Upper tool holder with upper wedge crowning (AMADA)
Split Rehfuß upper tool (AMADA)
Split 4V universal die (AMADA) in die shoe
2 front sliding support arms with sliding system
Side guards (pivoting doors)
Rear safety device (light barrier)
Machine light in rear area of machine
Freely movable foot control
Original operating instructions
