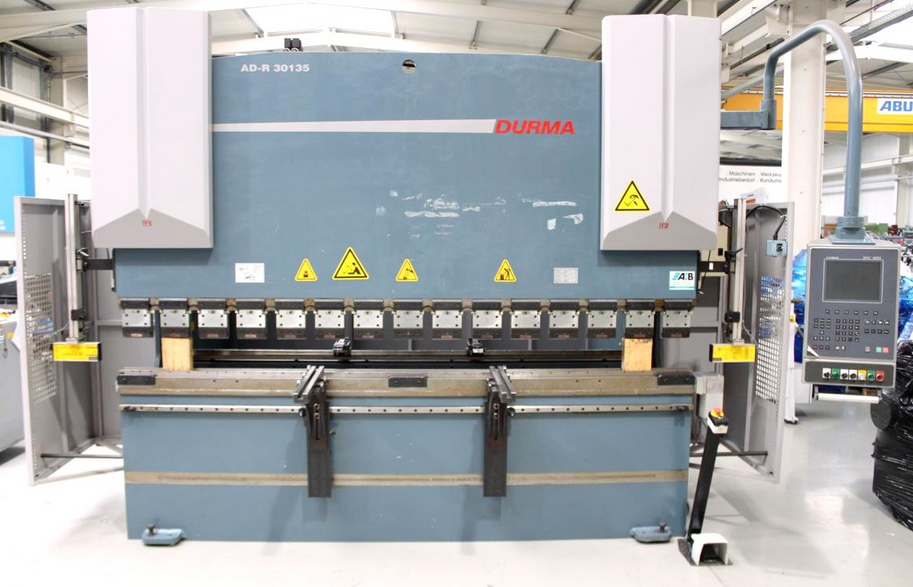

Durma AD-R 30.135 135 T

Press Force 135 t
Chamfer Length 3050 mm
Distance Between Columns 2600 mm
Column Arm 410 mm
Adjustment Speed 160 mm/sec
Working Feed 10 mm/sec
Return Speed 120 mm/sec
Stroke 265 mm
Daylight 530 mm
Table Height 900 mm
Oil Volume 200 l
Control DNC 880 S
Working Hours ~17,200 h
Total Power Requirement 15 kW
Machine Weight 10,250 kg
Machine Dimensions 4570 x 2360 x 2900 mm

Electro-Hydraulic CNC Press Brake
Two Synchronized Cylinders with High Performance Hydraulic Components
CYBELEC CNC Control DNC 880S
2D Graphic Display and Multiple Simulation
Graphic 2D Programming
Automatic Bending Sequence Calculation and Collision Detection
Large Product and Tool Library
Automatic Tonnage Calculation
Swiveling Operation Front Right
CNC Controlled Axes Y1 + Y2 + X + R + CNC Crowning
Upper Beam with Solid Self-Lubricating Four-Way Guide
CNC Electro-Motorized Back Stop (X Axis)
2x Manually Adjustable Stop Fingers
Adjustment Range up to 650 mm
CNC Electro-Motor Height Adjustment of Rear Stop (R Axis)
Adjustment Range up to 250 mm
CNC Electro-Motor Table Cambering
AMADA/RAPID Pneumatic Upper Tool Clamp
AMADA Lower Tool Holder Including Die Shoe
FIESSLER Laser Safety Device Front
2x Front Movable Support Arms Sliding System
Side Safety Device Swinging Doors
Rear Safety Device Swinging Door
1x Freely Movable Foot Switch
Large Hydraulic Oil Tank
Original Operating Instructions
