1/1
Amada, Promecam HFB 170 ton x 4230 mm CNC
Ref :
2727064-3-CP
Condition :
Used
Manufacturer :
Amada, Promecam
Model :
HFB
Pressure :
170 ton x 4230 mm CNC
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

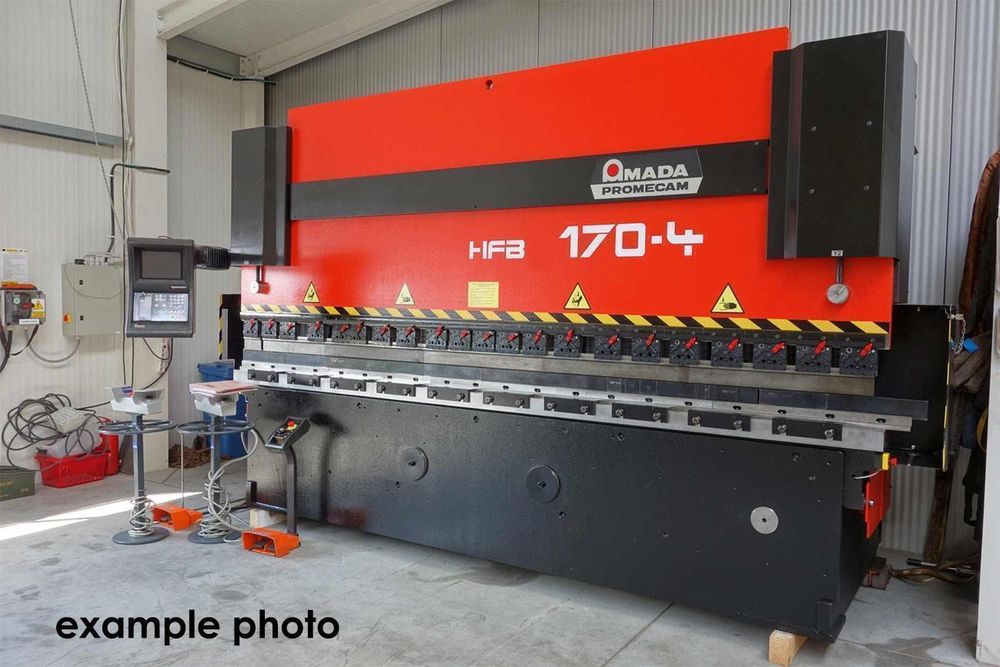

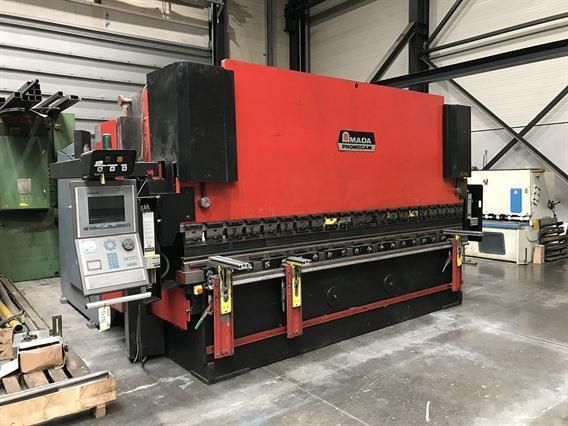

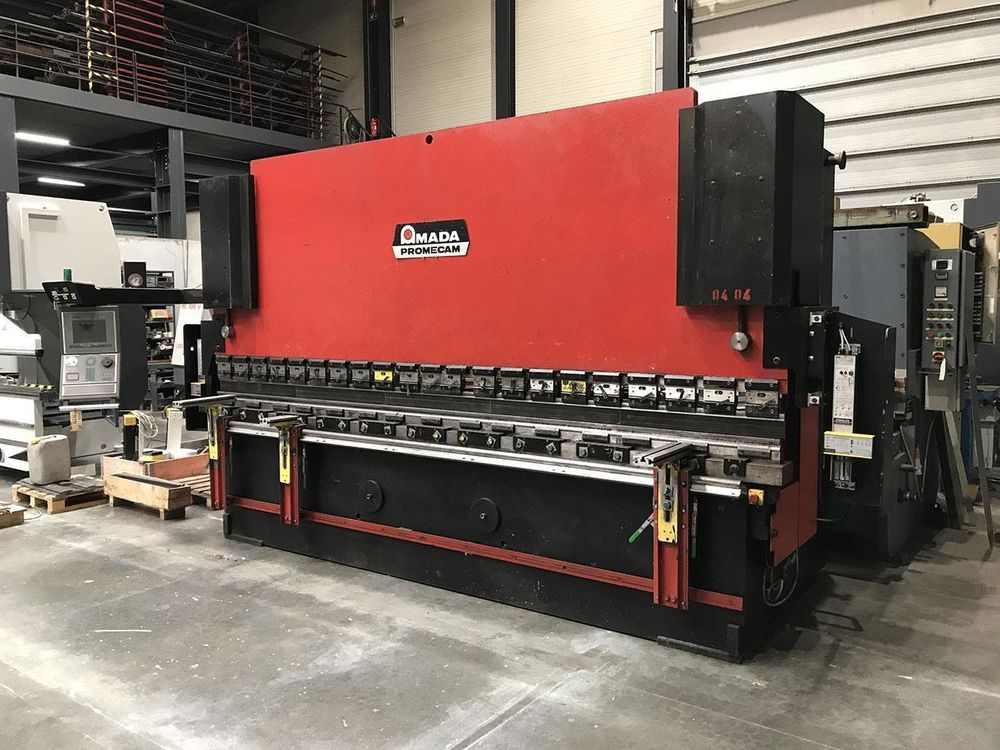

AMADA PROMECAM HFB 170 ton x 4230 mm CNC
capacity 170 ton x 4230 mm

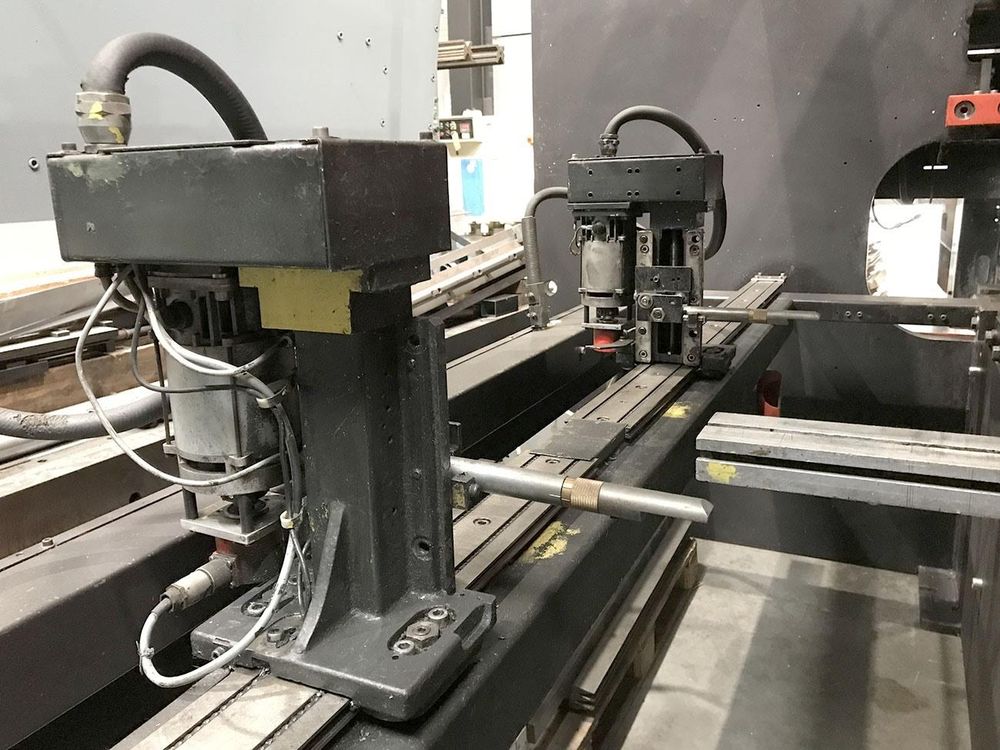

backgauge CNC

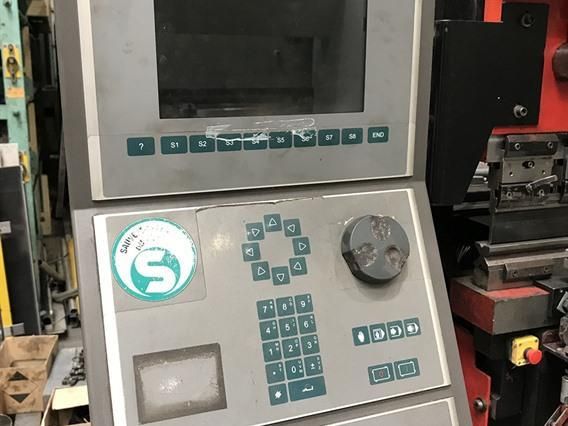

control 2D Touch
passage between uprights 3760 mm
max stroke 180 mm
max distance between table and ram 450 mm
depth of throat 410 mm
table width 180 mm
locking speed 100 mm/sec
working speed 8 mm/sec
returning speed 80 mm/sec
electric motor power 11 kW
length 4980 mm
depth 2240 mm
height 2840 mm
weight 13 ton
7 axes: Y1 / Y2 / X / Z1 / Z2 / R1 / R2
Amada bombation
