PROMOTOR PM-HDD-35-60 Warping Head: One 450mm

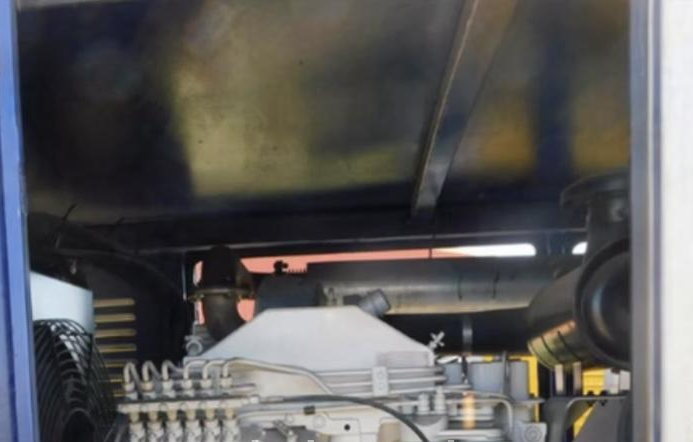

Diesel Engine 120 kW @ 1800 rpm Cummins 6BTA5.9-GM120
Piston Pump 145 ml/r @ 350 bar Danfoss D1P145RA TPSN S D4 NI
Gear Pump 22.5 ml/r @ 280 bar Rexroth
Air Cooler 0.85 kW / -C @ 26 bar DEO DELH-9-P
Return Filter 63 LPM 210 μm
DHPU Working Pressure 250 bar
Hydraulic Oil Tank Capacity 1100 L
Fuel Tank Capacity 400 L
Number of Drums 2
Type Double Drum (Side by Side)
Configuration 2 x Left Hand & 2 x Right Hand
Power Hydraulic
Rope Direction Down Coil – Under Wind
Warping Head 450 mm
Drum Capacity (2) Dia. 48 mm by 150 mm Polypropylene Rope, 6 layers each drum
Rated Pull 37.0 Ton x 0-10 m/min (1st layer)
Rated Pull 31.0 Ton x 0-12 m/min (2nd layer)
Drum Brake Hold 60.0 Ton (Static – 1st layer)
Brake Type Spring Loaded, Hydraulic Released
Control Free Standing Type Adjacent to Winch
Hydraulic Motor Sai (Italy)
Control Valve Danfoss (Denmark) or Rexroth (Germany) or Sun (USA)
Power Required Approximately 90 kW
Flow Required Approximately 140 L/min
Pressure Required Approximately 20 Bar
Weight Approximately 7.5 Ton (Without Rope)
Dimension Approximately L1771 x W3633 x H1496 mm
Certification 3rd Party ABS Witness or Similar
