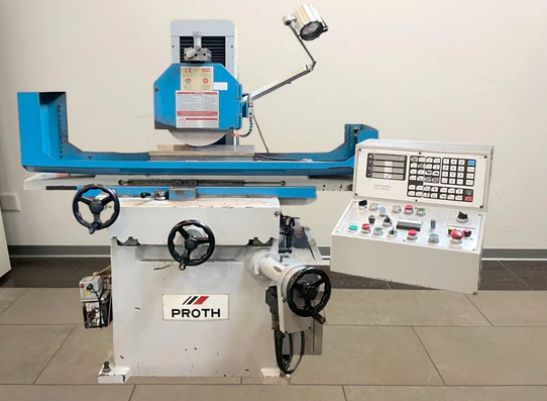

Proth PSGS-2550AH Surface Grinder

Table length 500 mm
Table width 250 mm
Max. distance from table to spindle-centreline 500 mm
Longitudinal travel (X-axis) 600 mm
Cross travel (Z-axis) 340 mm
Vertical travel (Y-axis) 280 mm
Table speed stepless from 5 m/min to 25 m/min
Grinding wheel speed fixed 2900 t/min
Grinding wheel diameter 350 mm
Grinding wheel width 25 mm
Grinding wheel bore 31.75 mm
Voltage 50 Hz 3x400 V
Grinding spindle motor 2 CV
Machine weight 1350 kg
Overall dimensions Length 1770 mm
Overall dimensions Width 1500 mm
Overall dimensions Height 1900 mm
Paper filtration system
Magnetic plate 500×250 mm
Redressing device
Lamp
